nanoCAD Platform Help

Copying Objects and Creating a Block by Dragging with the Right Mouse Button

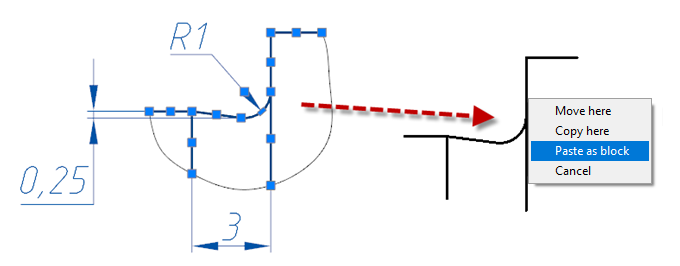

By dragging objects with the right mouse button, you can create their copies or create insertions of a new block from these objects. After dragging the selection, the context menu is displayed with possible variants of copying:

CAD drafting Copying Objects and Creating a Block by Dragging with the Right Mouse Button 0

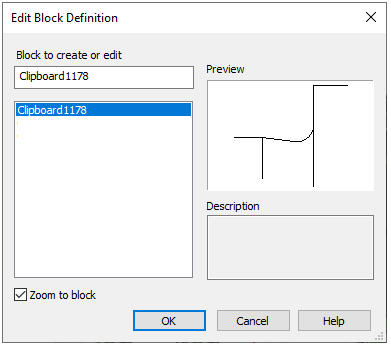

If you select the Paste as block option, a new block with insertion in the place of transfer will be created in the document.

CAD software Copying Objects and Creating a Block by Dragging with the Right Mouse Button 1
