Context menu entry fields

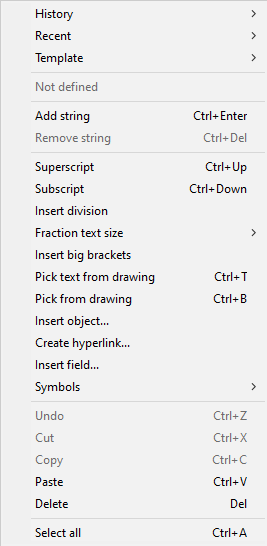

In the context menu the following entry is available.

History - recall last entry.

Recent - recall the most frequently used values.

Superscript - insert superscript (a combination of Ctrl+Up).

Subscript - insert a subscript (a combination of Ctrl+ Down ).

Insert division - insert shot.

Pick from drawing - the command allows you to take data from the drawing and the properties of a standard part. When you select this command, the panel Select the value apperas :

Measure distance (Z) - to take drawing diamensionally linear or geometric size. Command can be selected by pressing Z.

Measure angle (X) - take the angular size of the drawing. Command can be selected by pressing X.

Measure Perimeter (C) - to take drawing the perimeter of a closed polygonal line or length. Command can be selected by pressing C.

Measure area (V) - take the value of the drawing area of the closed loop. Command can be called by pressing V.

Complex area(Shift+V) - take a few drawing value areas closed loop.

Calculator (M) - Calculate the number with built-in calculator in nanoCAD Mechanica 25.

Take from notes (,) - insert text information from the notebook.

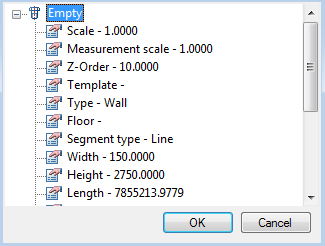

Take from property (B) - allows you to take command of the sub-parameters database in Construction Site 25. Parameter is inserted preserving the dynamic link with the object. When you change a parameter line items are changed in the input field.

Note:

To insert static text, hold the Ctrl key while selecting parameter.

Mark text object (N) - to take the text from the drawing.

Cancel - stop the command and return to the Previous menu.

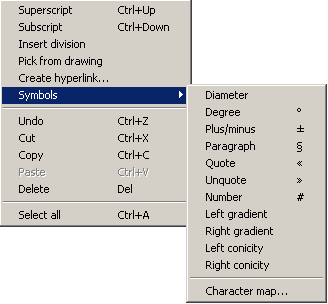

Symbols - inserting special characters

Undo - Undo the last command (the combination of Ctrl+Z).

Clipboard operations

Cut (a combination of Ctrl+X).

Copy (combination Ctrl+C).

Paste (a combination of Ctrl+V).

Delete - Delete the entry field.

Select all - highlight the input field.
