Comparing Dimension Styles

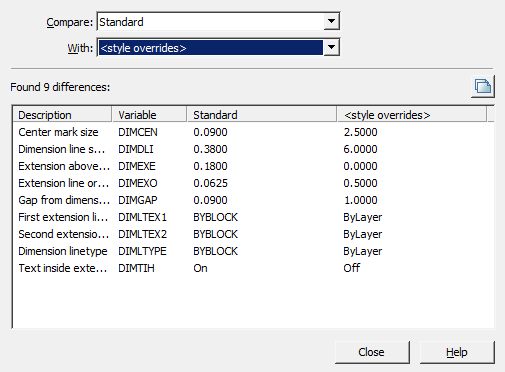

The dialog for comparing two dimension styles or viewing a list of all style properties is invoked by the "Compare..." button in the "Dimension Style Manager" dialog.

"Compare:" field - selects the first dimension style to compare.

"With:" field - selects the second dimension style for comparison.

"Difference table" - the table contains data on non-matching properties.

Table columns:

• Description - parameter name.
• Variable - parameter system name.
• Variable value columns - parameter values in compared styles.

Button "Copy to clipboard" - allows you to copy comparison results to the clipboard.
