Collection Editor

Serves for quick creation of lists and their subsequent use in form controls and custom sorting in tables.

Dialog

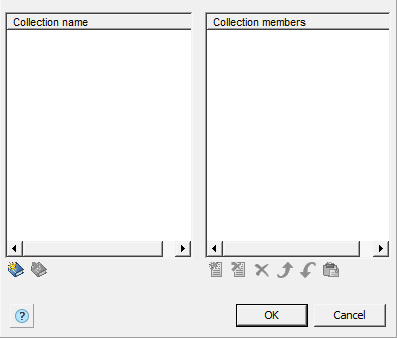

The dialog is divided into two parts: Collection name and Collection members.

CAD drafting Collection Editor 0

Collection management tools

CAD software Collection Editor 1Add new collection.

CAD drawing Collection Editor 2Delete collection.

Collection members management tools

CAD drafting Collection Editor 3Add new collection member.

CAD software Collection Editor 4Delete collection member.

CAD drawing Collection Editor 5Delete all collection members.

CAD drafting Collection Editor 6Move collection member upper.

CAD software Collection Editor 7Move collection member down.

CAD drawing Collection Editor 8Paste from clipboard.



Create and assign a collection while editing a form

In order to create a collection you need to:

  1. Click the "Data" option in the DB-Listbox or DB-combobox. A dialog box will appear.
  2. In the list of collections, call the CAD drafting Collection Editor 9"Add new collection" command and enter a name for the collection.
    CAD software Collection Editor 10
  3. Set the composition of the collection.
    CAD drawing Collection Editor 11
    CAD drafting Collection Editor 12
  4. Select a collection and click "OK" in the Collection Editor dialog box.

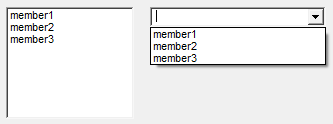

  5. he created collection will look like this:
    CAD software Collection Editor 13

Creating custom filtering on a table

In order to create a collection you need to:

  1. Go to Edit Table Dialog "Main Menu - Rows - Custom Sort...".
  2. In the list of collections, run the CAD drawing Collection Editor 14"Add new collection" command and enter a name for the collection.
    CAD drafting Collection Editor 15
  3. Set the composition of the collection.
    CAD software Collection Editor 16
    CAD drawing Collection Editor 17
  4. Click "OK" in the Collection Editor window.

Purpose of custom filtering in a table

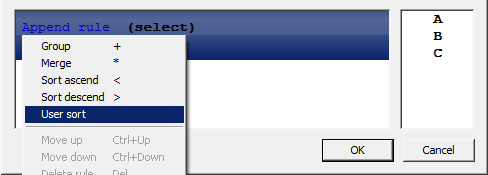

  1. In the "Row grouping and merging" dialog box add a "User Sort" rule.

    CAD drafting Collection Editor 18

  2. Select a collection and click "OK".

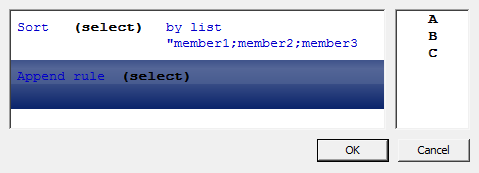

  3. The custom sort created will look like this:
    CAD software Collection Editor 19

Important!

Collections are saved to the database, they can be used in other objects nanoCAD Mechanica 25.

Forms and tables have separate stores.

Collections created by editors or administrators are available to everyone and cannot be edited by the user (the collection editing buttons will be grayed out).

User-created collections are only accessible to the user.
