Collecting Multileaders
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Collecting Multileaders
Ribbon: Home, Annotate – Leaders –
Multileader Collect
Menu: Modify – Object – Multileader >
Collect
Toolbar: Mleaders –
Command line: MLEADERCOLLECT

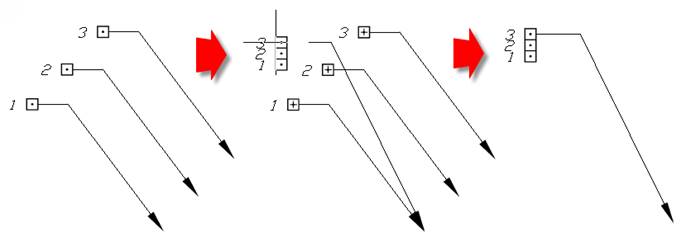

Collecting several multileaders containing blocks in one with horizontal or vertical location of blocks.
Command options:
|
Vertical |
Specifies options for spacing and aligning the selected multileaders. The command memorizes and by default uses the align method specified last time. |
|
Horizontal |
Leader landings with the content will be evenly distributed between two points specified on the screen. |
|
Wrap |
Specifies a width value for a wrapped multileader collection. |
|
Specify wrap width |
Wrap width. |
|
Number |
Maximum number of blocks per row in the multileader collection. |
Command prompts:
|
Select multileaders or [?]: |
Specify the multileaders to be collected. Multileaders without blocks will be excluded from the selection. The blocks will be placed in the order of selecting multileaders. An extension line of the last selected leader will be saved. |
|
Specify the position of collected multileader or [Vertical/Horizontal/Wrap]<Vertical>: |
Select the method to collect multileaders (horizontal or vertical) and specify the location of its content in the drawing workspace.
|
