Circular construction axis

Main menu: Construction - Coordinate axes - Separate Circular Construction Axis.

Ribbon: Construction - Architecture - Separate Circular Construction Axis.

Toolbar: Separate Circular Construction Axis ( "Coordinate axes").

Command line: SPCIRCCLINE.

To create a separate rotary axis:

1. Specify center point of the axis.
2. Specify the radius of the arc.
3. Specify marker angle.

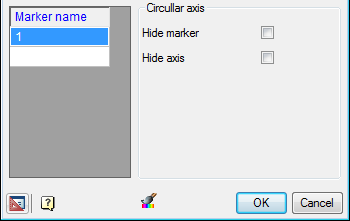

Context menu of the rotary axis is as follows:

Column Marker name contains a list of the names of the markers. To add a new marker, click in an empty field and enter the name of the marker.

Arc axis

• Hide marker - hides the marker and is only displayed in the drawing axis;
• Hide axis - the axis hides, showing only the marker;
