In the dialog box Properties parameters are set for table cells.

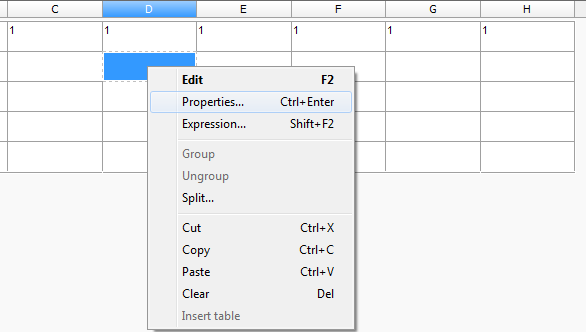

To edit the properties of a single cell in a table full editor, select the desired cell and issue Properties from the context menu or by pressing Ctrl + Enter, double click on the cell, as a gesture to "down" on the cell. The effect of this command is similar Cell Properties screen table editor.
To edit multiple table cells in the full editor, select the desired cells and issue the Properties
from the context menu. The effect of this command is the same action as Properties screen editor table.
| |
There are six tabs:
- Flag

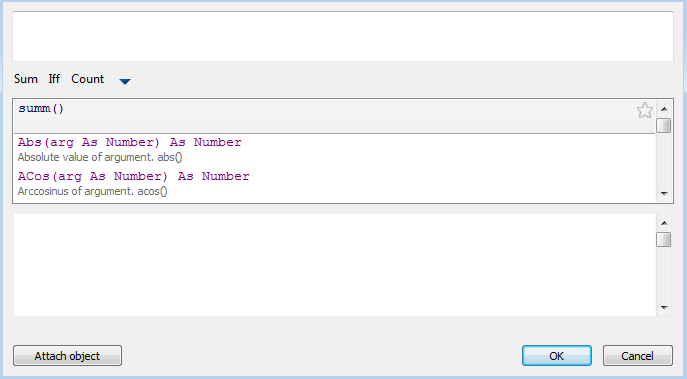

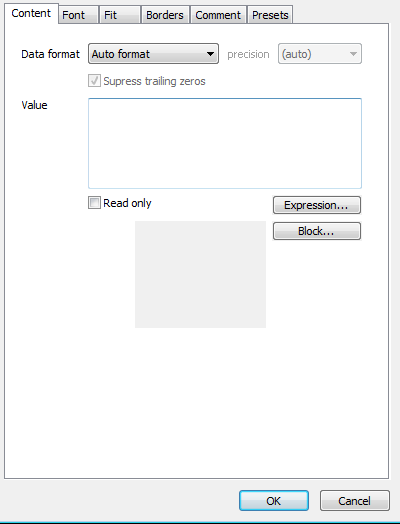

Content. This tab specifies the type of data in a cell the user, set the formula for calculating values.
In the properties of the cell can format values and enter the contents of a table cell. Checking unmodifiable disables the ability to edit the cell. Such a cell is highlighted in color.
 | - The tool is used to insert the nanoCAD block the cell. |

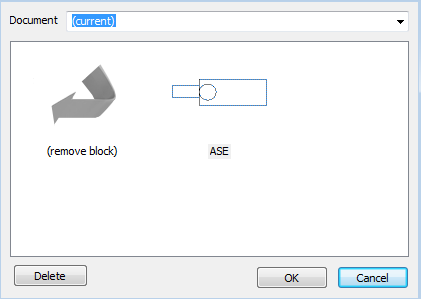

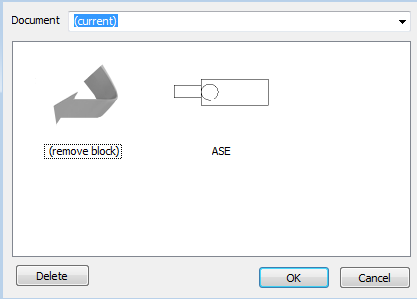

Select the list that appears in the desired unit from the current drawing file. If necessary, select another file using the menu View.

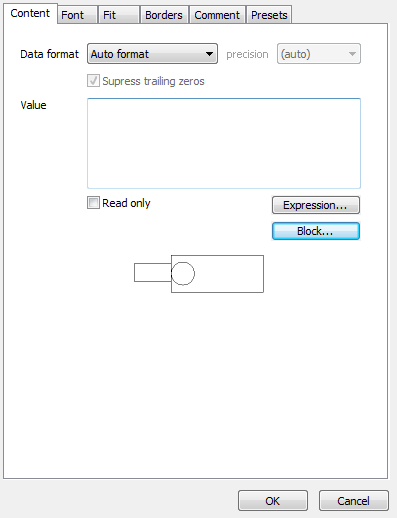

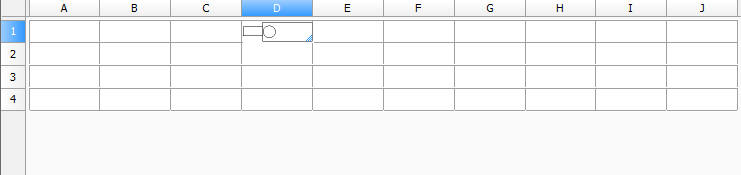

After selecting a unit, it is displayed in the properties window of the cell, as well as in a table cell.
To disconnect the unit, press the Remove block in the block selection.

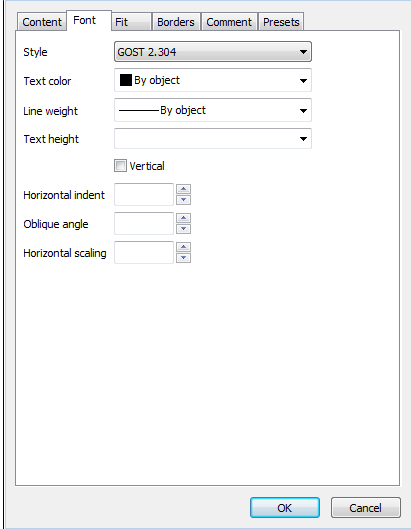

- Bookmark Font. This specifies the text font, color symbols, line thickness, font height, offset from the cell boundaries, the angle that defines the direction of the text, as well as the aspect ratio of the text.
Switch Vertical change text direction to vertical. Empty fields oblique Angle and horizontal scaling means that the values are taken from the text style and horizontal indent - that the value is taken from the table settings.

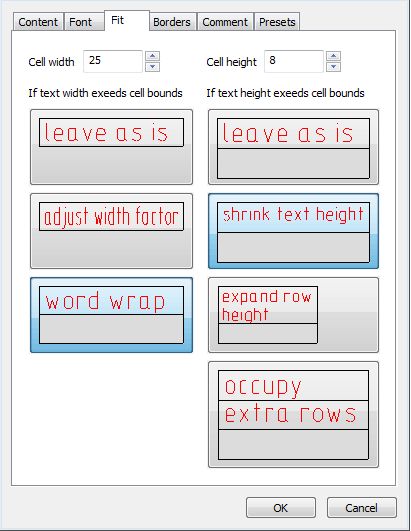

- Bookmark fit

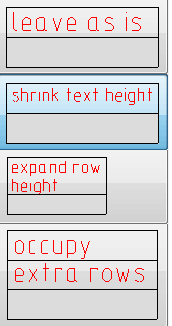

This specifies the cell, cell as well as parameters of inscribing text into the cell. If the text width exceeds cell bounds
If the text height exceed cell bounds:
Mode Occupy extra row does not change the number of rows in the table, the desired row is made higher by the required number of times and line.

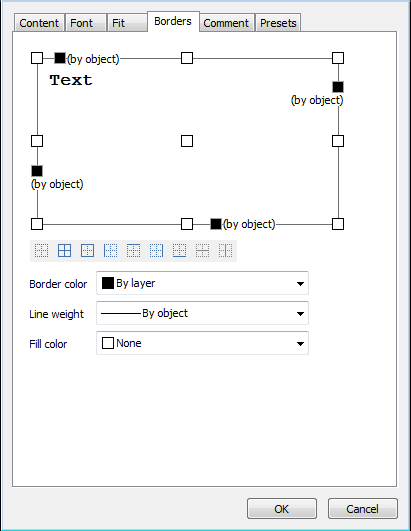

- Bookmark borders. Here you specify the type, color, thickness of the boundary line of the selected cell, you can manage the display of individual cell borders. Enable or disable the display of individual boundaries, you can use buttons

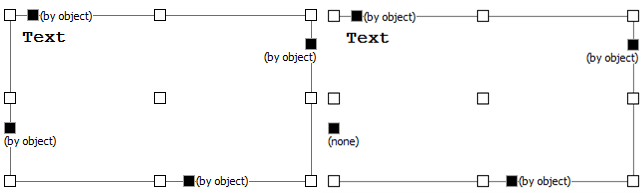

or in the preview by clicking the left mouse button near one of the cell borders. Alignment of text within a cell preview is set by clicking the left mouse button.
| To set the color of individual borders, click the left mouse button on the icon |  | and select a color from the drop down list |

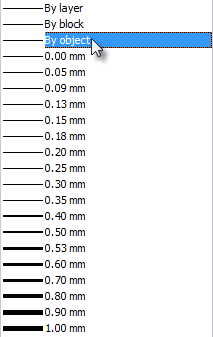

To determine the weight of the individual borders, click the left mouse button on the line (By layer) and choose the thickness of the drop-down list.
Color, line thickness for the cell borders, and cell shading can be set from the menu.
To apply the changes in color and thickness, click on the desired boundary. Can also be selected by using the display boundaries.

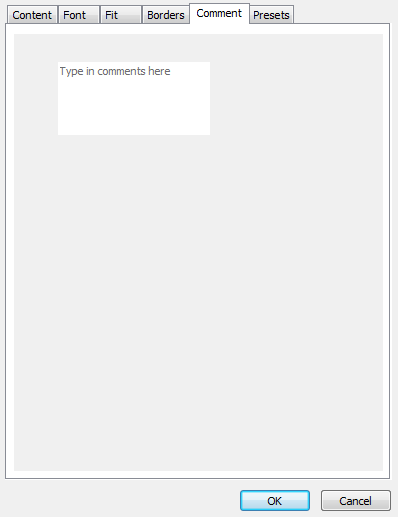

- Flag Comment. A field for entering a comment.

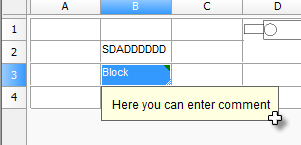

Cell with the comment is displayed in the editor by a green label, which displays a hint when you hover the mouse on it.which is displayed a hint.

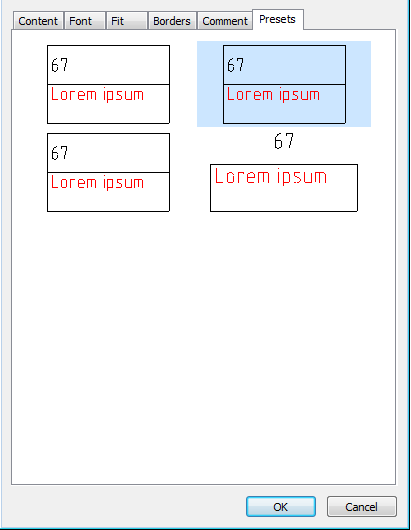

- Bookmark Styles. Here you can set the style for the cell.
To create a style, right-click in the blank area of the Style tab, then on the shortcut menu, select Create.
To work with a style template, open the context menu style.
|
