Calibration

    Ribbon: Raster – Modification >  Calibration

    Menu: Raster –  Calibration

 Command line: CALIBRATION

   This functionality is available only in the Raster module.

The calibration operation affects the entire image. When multiple images are selected, the command is applied to visible images located on unlocked layers.

The calibration transformation is determined by the transformation model and a set of calibration pairs.

When preparing calibration, it is necessary to specify the vectors of raster points displacement. To do this, specify a set of calibration pairs. Each of these pairs determines two coordinates - the current position of a point on the image (measured point) and its required theoretical position (real point).

A transformation model is a type of parametric transformation used in calibration. Each model determines a family of transformations of the same type.

When using some sets of calibration pairs and individual methods, the program is not able to perform the transformation of a given type in such a way that all measured points move to the corresponding real points. This leads to deviation of the points obtained as a result of transformation from the corresponding real points. The criterion for choosing the conversion parameters is to minimize the root-mean-square error at all calibrated points.

Each of the calibration pairs is one of the following types:

·         Grid – if a pair is part of the calibration grid; used in calculating the calibration parameters and assessing the calibration accuracy;

·         Check – if a pair is used when calculating the calibration parameters and assessing the calibration accuracy;

·         Control – if a pair is used only to assess the calibration accuracy and does not affect the calibration parameters;

·         Unused – if a pair is not used when calculating the calibration parameters and assessing the calibration accuracy.

Basic Calibration steps

1.    run the calibration command;

2.    create a set of calibration pairs;

3.    specify the position of measured points;

4.    choose a suitable calibration method;

5.    calibrate.

Before performing the calibration, it is recommended to set the coordinate system - origin and scale.

Calibration command

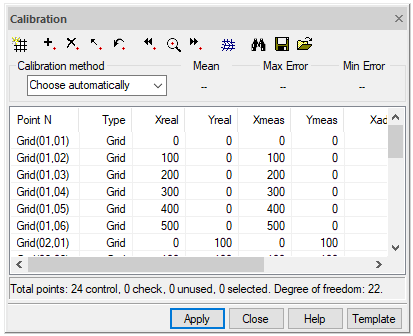

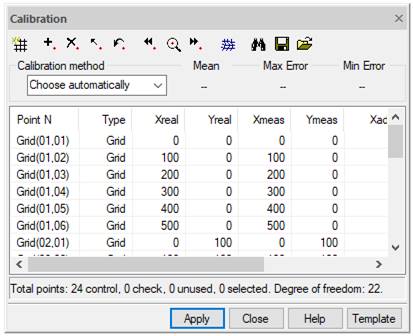

The command opens the calibration dialog box.

Calibration dialog button

Specifying a set of calibration pairs

When creating calibration pairs, their definitions are added to the list in the Calibration dialog box:

1.    Specify the known theoretical coordinates of points (real points) in one of two ways: by specifying a calibration grid or adding points one by one, or both at the same time. When created, each calibration pair has the same coordinates of measured and real points;

2.    Set the corresponding measured points for all real points by selecting them in the image or by entering their coordinates from the keyboard.

Setting the calibration grid

When specifying a calibration grid, it creates a set of calibration pairs, the points of which are located at the nodes of a rectangular grid. Such calibration pairs relate to the Grid type.

The position of the calibration pair points specified when creating a grid is determined by the origin of the grid, the cell size, and the number of cells in the horizontal and vertical directions.

There can be only one grid in a calibration object. Re-setting the calibration grid will delete all calibration pairs belonging to the existing grid.

Click the Define grid button

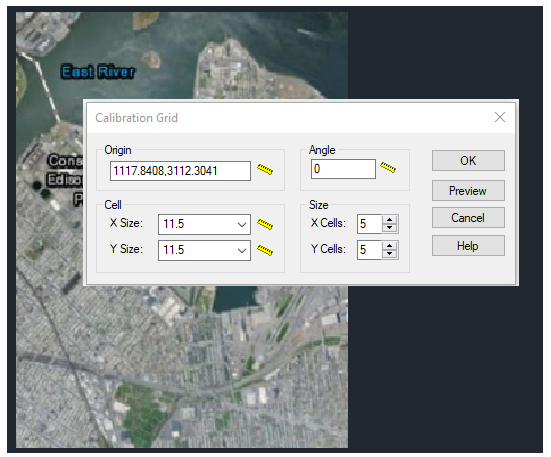

The Calibration grid dialog box appears:

1.    Specify the calibration grid origin;

2.    Enter coordinates in the Origin field or click the Choose origin button and specify with the mouse the location of the grid origin in the image. The bottom left corner of the grid is taken as the grid origin, and the grid is generated in the positive direction of X and Y axes;

3.    Set cell dimensions along X and Y axes;

4.    If necessary, you can also add columns in the negative direction of X or Y axes by specifying a negative value for the X or Y dimensions;

5.    Specify the number of cells along X and Y axes using the X cells and Y cells respectively;

6.    To avoid errors, click the Preview button and view the specified grid. If necessary, correct errors;

7.    Select OK to create a calibration grid and return to the Calibration dialog box.

You can create a rectangular grid rotated by a specified angle. Otherwise, the grid rows and columns will be orthogonal to the X and Y axes.

Setting the calibration grid through the loaded file

To add an arbitrary calibration grid, it is possible to create a text file with the RPT extension. After specifying the coordinates and parameters of all real calibration points in it, and starting the calibration dialog before starting to change the measured calibration points, you should load this file through the Import grid button.

RPT file format:

first line:

·         Unsigned Int – Calibration method

second line:

·         Unsigned Int – Number of points

next lines (separated by a space):

·         Unsigned Int – Sequential number of the calibration pair

·         Double – Real point x coordinate

·         Double – Real point y coordinate

·         Double – Measured point x coordinate

·         Double – Measured point y coordinate

·         Double – Calculated point x coordinate (identical to x-measured point before calculation)

·         Double – Calculated point y coordinate (identical to y-measured before calculaiton)

·         Bool – Check point

·         Bool – Control point?

·         Bool – Used point?

·         Unsigned Int – Sequential number of point in the grid along x axis (starting from 0)

·         Unsigned Int - Sequential number of point in the grid along y axis (starting from 0)

String – Point label (name)

Example of RPT file

Adding calibration pairs one at a time

When using this method, pairs are added one by one. The created pairs can be of one of the following types: Check, Control or Unused. This procedure is designed so that you can create pairs by specifying only the real point coordinates. The measured points can be specified later.

Adding points:

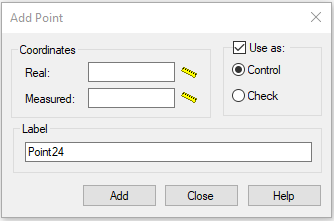

1.    Select Add in the context menu or click the Add point button located in the Calibration dialog box. The dialog box for adding a point will appear;

2.    Enter the real point coordinates in the Real field;

3.    Enter the pair name in the Label field, otherwise this pair will be named PointNN by default;

4.    Enter the measured points coordinates in the Measured field or specify them on the screen using  button. If this is not done, their coordinates will coincide with the real ones and can be changed later;

5.    If necessary, in the Use as field, change the type of pair from Control to Check or, by clearing the checkbox, define the pair type as Unused;

6.    Press ENTER or select Add to create the pair and continue the operation.

Specifying measured points on the screen

The measured points can be specified on the screen using the mouse:

1.    Select the calibration pair to be changed from the list of the Calibration dialog box or on the screen. The program will highlight the selected point with help of “grips”;

2.    Specify the selected pair using  button or by the Zoom to command of the context menu. The program pans the image so that to show the measured point of the selected pair in the center of the screen;

3.    Change the location of the measured point. Place the cursor over the “grips” and left-click. Move the cursor and click again to determine a new location of the measured point;

4.    Move to the next or previous calibration pair. Select Next or Previous in the context menu or click  or  button on the toolbar of the Calibration dialog box. The program will pan the image so that to show the next (previous) measured point of the selected pair in the center of the screen.

Choosing a calibration method

A calibration method is chosen taking into account the nature of image distortion, as well as the number and location of calibration pairs.

If there is no information regarding image distortion, you can use the Choose automatically method. In this case the program itself will choose the calibration method that is optimal for a given set of calibration pairs.

The table lists possible distortions and calibration methods used to correct them.

Calibration methods to correct distortions

Each calibration method assumes the minimum number of calibration pairs the model can use. If the number of calibration pairs exceeds a certain value, all models except Surface Splines will produce non-zero distortion.

The following table lists the limits on the number of calibration pairs for each calibration method:

Limitations on the number of pairs for each distortion correction method

Calibration accuracy estimation

Calibration transforms the entire raster image through a calculated transformation. Usually not only the points specified in the calibration pairs are moved, but all the image points. Accuracy estimation allows you to determine the offset of each raster point for the selected calibration method prior to performing the calibration procedure.

During the estimation, another point is created for each calibration pair, called the calculated one. It shows the position of the measured point after performing the selected calibration method. Labels of such points are highlighted in yellow (labels of real points – blue, labels of measured points - red; you can change these default colors in the Options dialog box). Then the program calculates and displays the distances between each calculated point and the corresponding real point. These distances determine the calibration deviations for each pair.

The program calculates the parameters of the selected method, therefore, after transformation, each measured point is placed as close to the corresponding real point as possible. For these calculations the program uses only calibration pairs of the control and grid types.

To estimate the displacement of any point in the image after calibration, it is necessary to create a calibration pair with measured and real points that have the coordinates of the required image point and assign this pair a check type. This pair will not be considered when determining the transformation parameters, but the program will find the calculated point for it and calculate the deviation from the actual point location.

To estimate the calibration accuracy

1.    Create calibration pairs required to correct image distortions.

2.    Specify the location of the measured points.

3.    If necessary, create test pairs to determine the direction of movement of arbitrary pairs.

4.    Select the desired method from the list of calibration methods. Only models applicable to a given set of calibration pairs can be used. If these requirements are not met, the estimation cannot be completed.

5.    Click the  button located in the Calibration dialog box.

The Mean error parameter shows the mean error of the chosen method. Note also the Xerr and Yerr values, which are used to estimate the error of each point when using the chosen method.
