Building a Profile Line

CAD drafting Building a Profile Line 0    Ribbon: TopoplanRelief > CAD software Building a Profile Line 1 Building a Profile Line

CAD drawing Building a Profile Line 2    Menu: GroundElevation > CAD drafting Building a Profile Line 3 Building a Profile Line

CAD software Building a Profile Line 4   Toolbar: Elevation > CAD drawing Building a Profile Line 5 Building a Profile Line

CAD drafting Building a Profile Line 6 Command line: NG_PROFILE_LINE

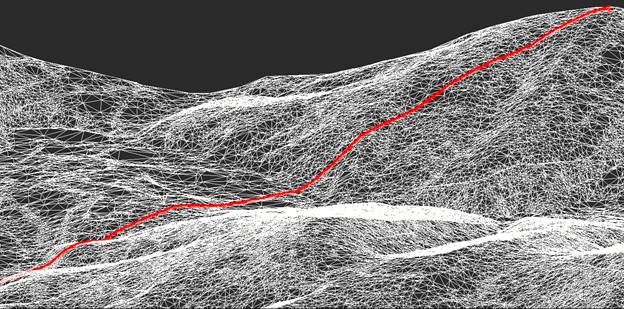

The Building a Profile Line command allows you to crate 3d Polyline type object that is located on the mesh and exactly repeat its relief in the specified place. To create an object, it is necessary to have a constructed triangulation mesh.

The profile line is specified by indicating several nodes, with the possibility of automatic closing its ends or extending them to the edges of the mesh. Profile lines can be used to place surface elevations along roads, generate reports, etc.

CAD software Building a Profile Line 7
