Break and Restore dimension line

Break dimension line

Main menu: Dimensions >Break dimension.

Main menu: Mechanical - Utilities - Breaks >Break dimension line.

Ribbon: Annotate - Dimensions -Break dimension line.

Ribbon: Mechanical - Utilities >Break dimension line.

Toolbar: Dimensions >Break dimension line.

Toolbar:  Breaks>Break dimension line.

Command line: MCDIMBREAK, DIMBREAK.

To create a dimension line break, you must:

• Call the command;
• Select the dimension. If the size was selected before calling the command, you do not need to select it again;
• Select two points by specifying a section of the dimension line to create a break;
• The break will be made.

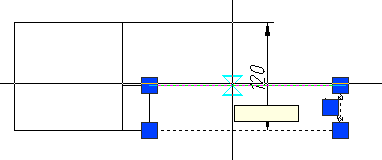

First point selection

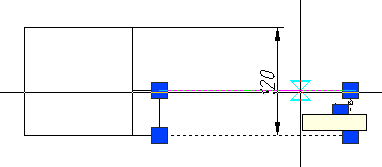

Second point selection

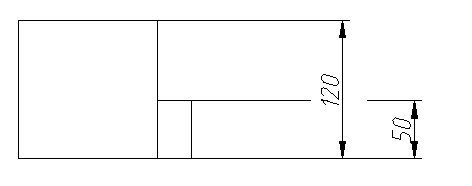

Result

Restore dimension line

Main menu: Dimensions >Restore dimension.

Main menu: Mechanical - Utilities - Breaks >Unbreak dimension line.

Ribbon: Unnotate - Dimensions >Unbreak dimension line.

Ribbon: Mechanical - Utilities >Unbreak dimension line.

Toolbar: Dimensions >Unbreak dimension line.

Toolbar:  Breaks>Unbreak dimension line.

Command line: MCDIMUNBREAK, DIMUNBREAK.

To restore the dimension line, you must:

• Call the command;
• Select the dimension. If the size was selected before calling the command, you do not need to select it again;;
• The restoration will be done.
