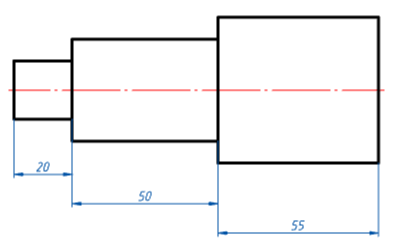

Arrange dimensions

Toolbar:  " Dimensions">Arrange dimensions.

Command line: MCDIMARRANGE.

Procedure

To arrange, you need:

1. Call the command;

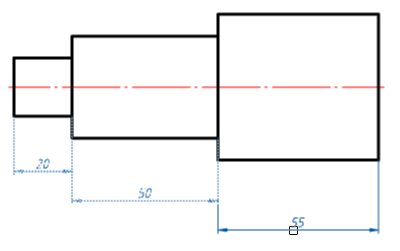

2. Indicate the dimensions to be aligned;

3. Confirm the selection with the "Enter" key;

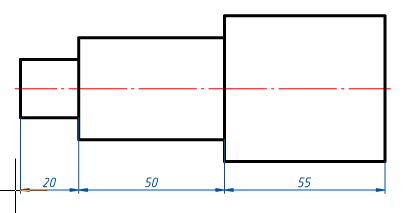

4. Pick a new location for the dimension group.
