Arc construction axis

Main menu: Construction - Coordinate axes - Separate arc construction Axis.

Ribbon: Construction - Architecture - Separate arc construction Axis.

Toolbar: Separate arc construction Axis ( "Coordinate axes").

Command line: SPARCCLINE.

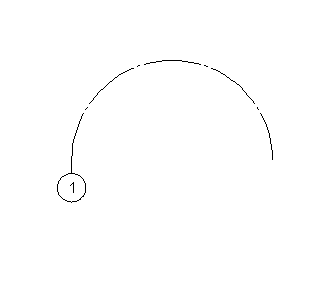

To create a separate arc axis

1. Specify center point of the axis.
2. Specify radius of arc (click or enter a value on the keyboard).
3. Specify the start angle (click or enter a value on the keyboard).
4. Specify end angle (click or enter a value on the keyboard).

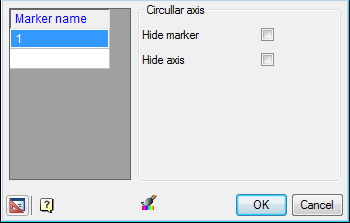

The double-click to open the context menu arc axis.

Column Marker name contains a list of the names of the markers. To add a new marker, click in an empty field and enter the name of the marker.

Options arc axis:

• Hide marker - hides the marker so it is only displayed in the drawing axis;
• Move marker - moves marker to the other end of the shaft;
• Two side marker - adds a marker at the other end of the axis;
• Hide axis - the axis hides, only the marker;
