Adding Measurement File

CAD drafting Adding Measurement File 0       Ribbon: Topoplan – Measurements Archive > CAD software Adding Measurement File 1 Add Measurements

CAD drawing Adding Measurement File 2       Menu: Topoplan – Measurements Archive > CAD drafting Adding Measurement File 3 Add Measurements

CAD software Adding Measurement File 4       Toolbar: Measurements Archive > CAD drawing Adding Measurement File 5 Add Measurements

CAD drafting Adding Measurement File 6       Command line: NG_GEOFILE_ADD_MEASUREMENT_FILES

Adding measurement files to the archive. The command moves the selected files (without opening) to the measurements archive.

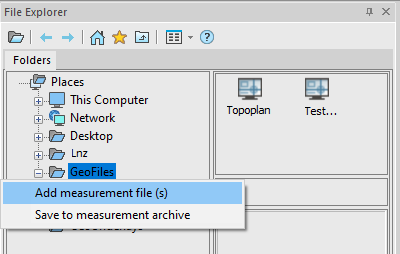

The command can be launched from the ribbon, menu, command line, and context menu of the Geofiles folder in the File Explorer bar.

CAD software Adding Measurement File 7

In the dialog that opens, select the measurement file to be added. Supported formats: DWG, SDR (Sokkia), CSV, XYZ, TXT. If the Geofiles folder is absent, then while Adding or Saving measurement files, the folder is created automatically in the path - \Users\*******\AppData\Roaming\Nanosoft AS\nanoCAD x64 26.0\GeoFile.



↑
