Accommodation details "Glass"

When placing parts "Glass" is necessary to specify the series bearing cap.

Choose from a glass base nanoCAD Mechanica 25 part, direct the cursor on the bearing - he highlighted. Click with the left mouse button.

It is further proposed to select the cover - direct the cursor on the cover, it is highlighted - click the left mouse button.

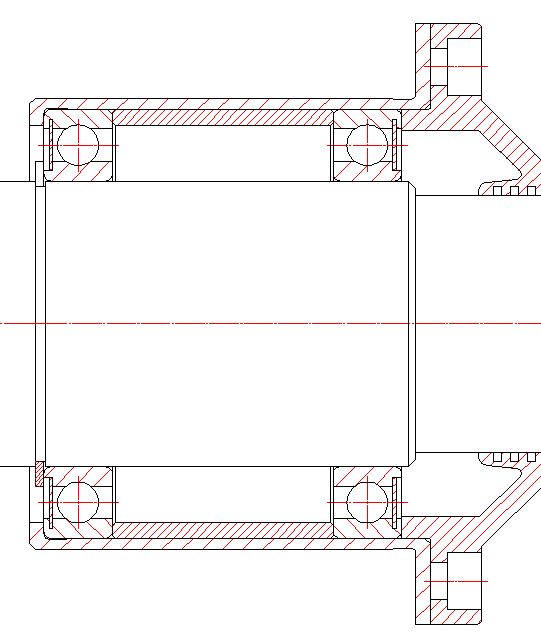

In the dialog that appears, click OK insertion cup.
