Accommodation details "cover"

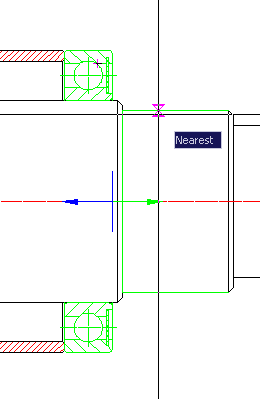

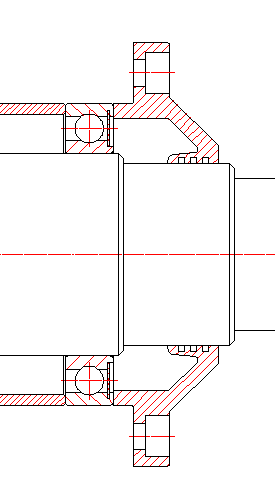

For details of accommodation "cover" is necessary to consistently left-clicking on the bearing, and then on the shaft portion. Automatically creates a cap with the attached parameters of the situation, the diameter of the bearing and the shaft diameter.

CAD drafting Accommodation details "cover" 0 CAD software Accommodation details "cover" 1
