2D Slope

Slope sign

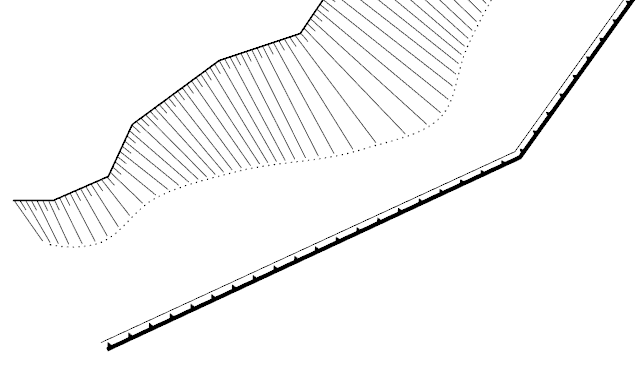

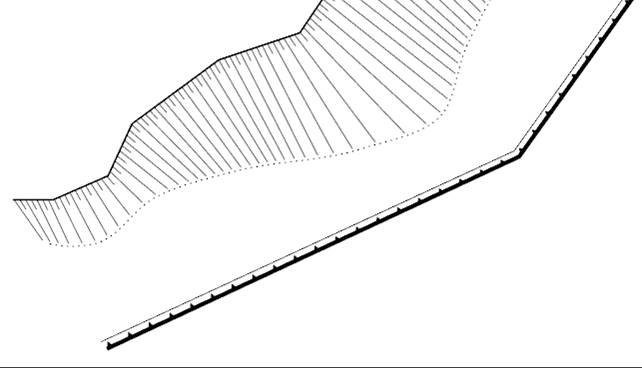

Selecting the slope type:

·         Unfortified slope;

·         Fortified slope;

·         Steep coast with a beach;

·         Steep coast without beach;

·         Stone retaining walls;

·         Wooden retaining walls;

·         Ground cliff.

Specify slope edges

Selecting the method for specifying the location of the slope in the drawing:

·         onScreen – slope boundaries should be drawn manually on the screen;

·         Selection – line objects that will define the lower and upper edge of the slope should be selected in the drawing field.

The top and bottom slope edges can be closed lines.

Smooth top of slope

Specify whether the top of the slope should be drawn from point to point as a polyline or a smooth line.

The parameter is available for certain slopes, when the method for specifying the slope edge is onScreen.

Smooth bottom of slope

Specify whether the bottom of the slope should be drawn from point to point as a polyline or a smooth line.

The parameter is available for certain slopes, when the method of specifying the slope edge is onScreen.

Draw bottom line

Specify whether the bottom slope line is required.

The parameter is available for certain slopes, when the method of specifying the slope edge is Selection.

Layer of slope

The layer on which the slope should be placed.

Apply changes? <Yes> or [Yes/No]:

Yes – slope, cliff or retaining wall will be created with the current settings.

No – if the settings have been changed, they will not be saved. The slope will be created with the settings displayed immediately after running the command.

Specify points of slope top or [Peak]:

Specify the first point of the top edge of the slope, or select the Peak option to build the slope from a single top point (hill).

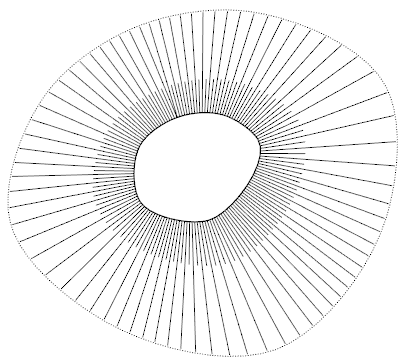

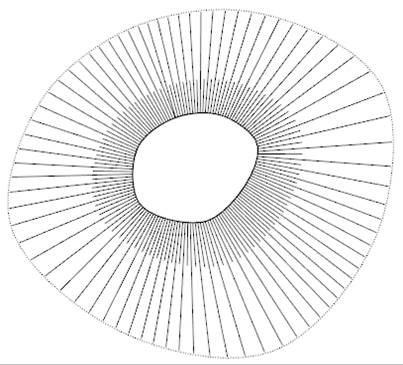

Specify slope peak point:

Specify a slope peak point to build a slope from one top point (hill).

Specify points of slope top or [Undo/ClosePeak]:

Specify the second and subsequent peaks of the slope top.

Undo – undo the entry of the last specified peak.

ClosePeak – close the line of the slope top.

Specify points of bottom slope or [Undo/Close]:

Specify vertices of the slope bottom.

Undo – undo the entry of the last specified vertex.

Close – close the line of the slope bottom.

Select top slope polyline or [?]:

Specify a polyline on the screen to build the top edge of the slope based on it.

Select bottom slope polyline or [?]:

Specify a polyline on the screen to build the bottom edge of the slope based on it.
