Layouts Manager

CAD drafting Layouts Manager 0    Ribbon: Layout – Manage > CAD software Layouts Manager 1 Layout Manager

CAD drawing Layouts Manager 2    Menu: Insert – CAD drafting Layouts Manager 3 Layouts

CAD software Layouts Manager 4 Command line: LAYOUTSMANAGER

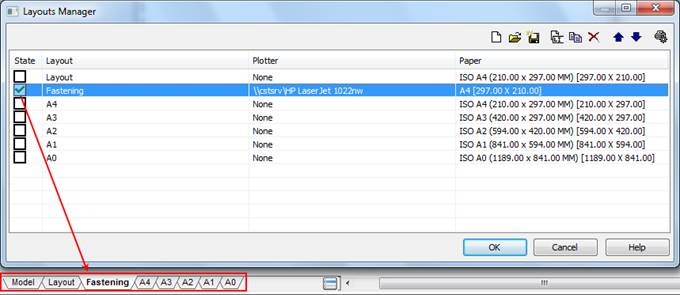

The Layouts Manager dialog window allows you to manage the layouts of the document.

The dialog box displays a list of the layouts that contained in the document and information about their options.

The commands intended for work with layouts are represented by buttons located at the top right of the dialog box:

CAD drawing Layouts Manager 5

To make the current layout, you should double click on the layout.

To choose layout, for example to copy it, left click on the layout.

To navigate in the layouts list quickly, press (or press and hold) the Down Arrow key or Up Arrow key on the keyboard.

To select multiple layouts at once, use the SHIFT and CTRL keys:

·         Holding the SHIFT key down selects all layouts located between the first and last clicks of the left mouse button.

·         By holding the CTRL key down, any layout from the list can be added to an existing selection by clicking the left mouse button.



Information in the columns of the dialog box:

State

State of layout. The current layout is marked with CAD drafting Layouts Manager 6.

Layout

Name of layout.

Page setup

Displays the name of the set of options assigned to the layout in the Page setup dialog. If the sheet does not have an assigned set of options, None is displayed.

Plotter

The plotter name assigned to the layout.

Paper

Information about selected paper format for the layout.

Buttons

CAD software Layouts Manager 7

Create new layout

Creates new layout.

CAD drawing Layouts Manager 8

Load layouts from template

Creates a layout from an existing template file.

CAD drafting Layouts Manager 9

Save layout as template

Saves a layout as template.

CAD software Layouts Manager 10

Rename layout

Renames a layout.

CAD drawing Layouts Manager 11

Copy layout

Copies a layout.

CAD drafting Layouts Manager 12

Delete layout

Deletes a layout.

CAD software Layouts Manager 13

Move up

Moves the layout up by one. The layout tab moves one position to the left.

CAD drawing Layouts Manager 14

Move down

Moves the layout down by one. The layout tab moves one position to the left.

CAD drafting Layouts Manager 15

Page setup

Opens the Page Setup dialog box to adjust the plotter settings.

To start the command:



1.    Select a layout in the list of the dialog box.

2.    Click the button of the necessary command.

3.    If the command asks for a new layout name, type its name in a dialog box and click OK.

Applying the Rename layout and Copy layout commands to a multiple selection is accompanied by opening the Name dialog for each of the selected Layouts in turn.
