CAD drafting Convert Points 0   Ribbon: TopoplanUtilities > CAD software Convert Points 1 Point Conversion

CAD drawing Convert Points 2   Menu: TopoplanUtilities> CAD drafting Convert Points 3 Point Conversion

CAD software Convert Points 4   Toolbar: Topoplan Utilities > CAD drawing Convert Points 5 Point Conversion

CAD drafting Convert Points 6 Command line: NG_CONVERT_POINTS

The command converts point objects: points to geopoints and blocks, blocks to points and geopoints, geopoints to points and blocks.

CAD software Convert Points 7



Selected objects

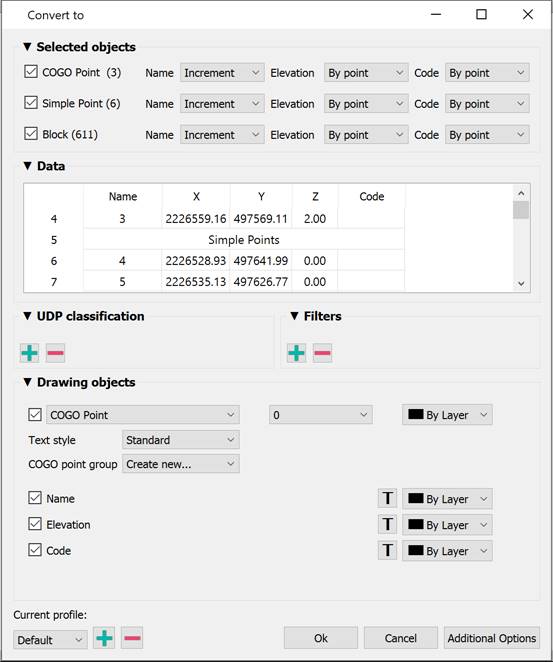

The section defines which types of point objects selected in the drawing should be converted to another type and where to get values for mark labels.

CAD drawing Convert Points 8

You can convert geodata simultaneously from all or selectively from the following types of point objects:

·         Simple objects of the Point type with mark labels in the form of ordinary text objects;

·         Block insertions with single-line attributes as mark labels (for example, conventional signs inserted into the drawing as blocks from the Conventional Signs toolbar);

·         COGO Point type objects with a label.

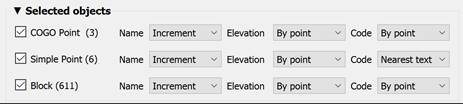

Values for labels can be taken from the increment, attributes of the point itself, or from the text object nearest to the point:

CAD drafting Convert Points 9

If you select By point, you will need to specify from which attribute of the point the information should be taken. The list will show the existing attributes of the geopoint or block:

CAD software Convert Points 10

If you select Nearest text, you will need to specify the maximum distance from the point to the text object at which this text will still be considered the label of this point:

CAD drawing Convert Points 11

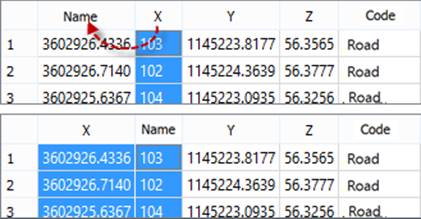

The table typifies and edits the data obtained from point objects: point coordinates by X, Y and Z, numbers, descriptions of points. The column heading displays the data type. In case of incorrect initial data typing, you can drag one header to another, thereby mutually changing them.

CAD drafting Convert Points 12

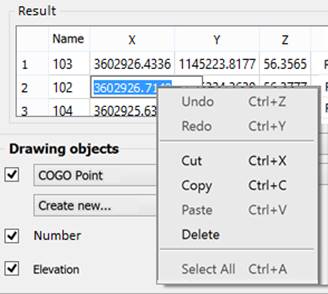

You can delete selected cells, rows, or columns. Multiple selection is supported using SHIFT and CTRL. Rows or columns are selected by clicking on the heading. Before manually deleting data, it is recommended to filter it out using filters.

You can also edit the data after double-clicking on a cell.

CAD software Convert Points 13

UPD classification

You can add custom properties to points with the CAD drawing Convert Points 14 button. You should specify the type (integer, float, or string) and name.

CAD drafting Convert Points 15

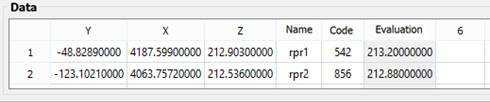

A new empty column with the name of the custom parameter appears in the Data table. Drag this column heading onto the heading of the column you want it to match.

CAD software Convert Points 16

CAD drawing Convert Points 17

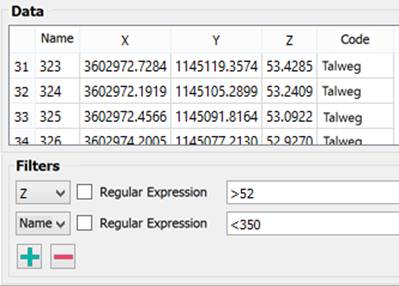

You can exclude data from conversion not only manually by deleting cells from the Data table, but also by setting filters. For example, you can exclude from the conversion all points with heights below 52 (column Z) and with a number greater than 350 (Name column).

CAD drafting Convert Points 18

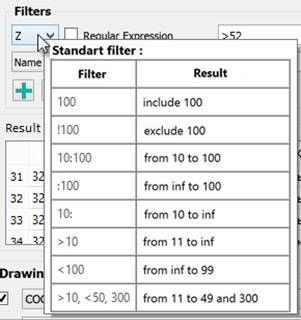

After adding the filter with the CAD software Convert Points 19 button, in the drop-down list, select the column by which all converted data will be filtered. Then set the value the column data should satisfy. The rest of the lines will be excluded from conversion. Hovering over a filter displays a tooltip with sample values.

CAD drawing Convert Points 20

It is recommended to set filters only after correct data typing in the Data section.

Drawing objects

The section determines what type of objects the received drawing point data should be converted into. And also what signatures the point label will consist of, and what design they will have.


You can import geodata in the form of:

·         Ordinary objects of Point type with labels in the form of text objects;

·         Blocks (similar to blocks of the Conventional signs toolbar);

·         Objects of Geopoint type with a label.


In case of data conversion into a Geopoint object, you should specify a group for them below, in the drop-down list of groups.

CAD drafting Convert Points 21

The list contains only groups of geopoints that exist in the current drawing. To create a new group, select the Create new option and enter a name for the new group.



If Block was selected, the points will be represented as block insets with single-line attributes to display labels. To do this, a new block will be created in the drawing. The conventional sugn for the point marker will be taken from the block in the drop-down list below.

CAD software Convert Points 22

Only those blocks that already exist in the current drawing are available in the block list. To make the blocks of the Conventional signs bar available, insert at least one symbol into the drawing.

The blocks will be inserted with a scale that takes into account the values of the current topographic scale.

If instead of selecting an existing block in the list, the Create new option was selected, then after the conversion starts, the block editor will open to create a point marker (conventional sign) block. The default is a circle. In the block editor, edit the marker, save the block, and exit the editor to complete the conversion.

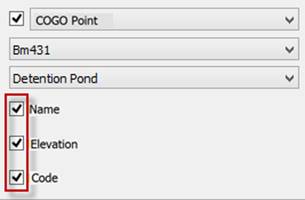

You can specify which labels will be displayed in the geopoint label on the drawing: name (geopoint number), elevation (Z-coordinate) and code (point description).

CAD drawing Convert Points 23

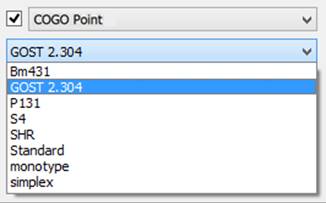

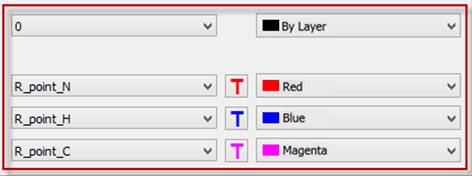

Individual layers and color can be assigned to place points and labels.

CAD drafting Convert Points 24

Labels can be assigned with a font.

CAD software Convert Points 25

Current profile

Allows you to save all the settings made in the dialog to a profile for later use.

CAD drawing Convert Points 26

Additional options

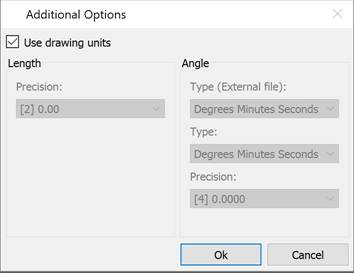

The Additional Options button opens a window where you can change settings for the units (UNITS) with which geopoints should be imported. By default, the current drawing units are used.


CAD drafting Convert Points 27
