Master of string of specification

Formation data for transmission to the specification can be done in automatic and semi-automatic modes. Some information can be inserted on the basis of the table of parameters associated with the geometry of the figure, the part can be entered manually in the editing dialog standard parts.

Call Master BOM line via menu Master / Master BOM line .

In the drop-down list are tabulated parameters involved in drawing details.

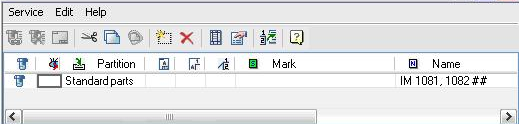

For a complete description of information on standard parts must be able to adjust or supplement information. For example, cover screws or the class thread. In this case, just add a "#".

The editor position will be able to insert text between the two lattices, and then save.
