Using Drawing Explorer to Work with Groups

The Drawing Explorer functional bar allows for full-value work with groups.

Quick creation of a group

1. Select objects on the screen.

2. Call the context menu of the Groups section of the Drawing Explorer toolbar.

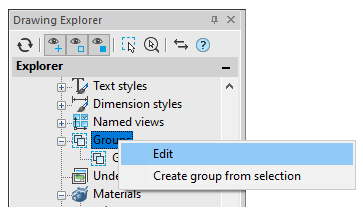

3. Select the Create group from selection. A group will be created and named Group1, where 1 is a sequence number of the created group.

Editing a group

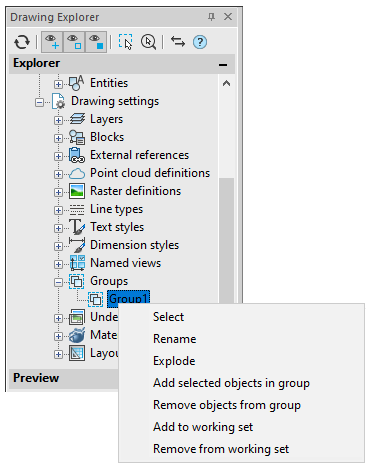

Edit commands are available in the context menu of the selected group.

CAD drafting Using Drawing Explorer to Work with Groups 0

Select	Selecting and positioning the group’s objects in the center of the screen.
Rename	Renaming the group.
Explode	Removing the selected group. Objects included in the group are not removed from the document.
Add selected objects in group	Adding preselected objects in a group.
Remove objects from group	Removing objects from the group selected in the workspace.
Add to working set	Adding all objects of the specified group in the current selection.
Remove from working set	Removing all objects of the specified group from the current selection.

To edit groups in the Object grouping dialog box, use the command of the context menu Groups > Edit…
