Point Info
-
-
-
-
-
-
-
-
-
-
-
-
-
Point Info
Ribbon: Point Clouds – Calculations and Info >
Point Info
Menu: Point Clouds – Calculations and Info > About Point
Toolbar: Point Clouds > Point Info
Command line: NPC_POINT_INFO

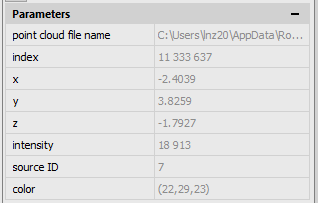

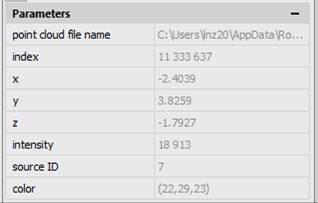

Point info displays information about point in the Properites bar. When running the command, the cursor changes to a cross and the Node snap symbol appears.

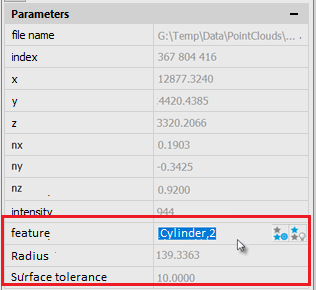

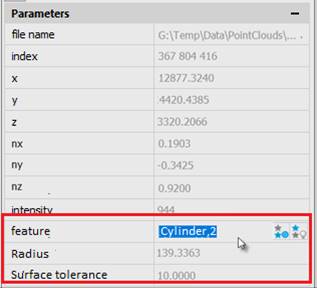

If there are recognized geometric features in the cloud, it is possible to view the geometric parameters of these features, as well as manage their visibility – isolate or disable their display.
To isolate or hide a feature, click the Feature option in the Properties bar. Two buttons will appear.
|
|
Allows you to hide the feature whose point was selected in the Point Information command. The result is similar to that of the Hide Feature command. |
|
|
Allows you to hide the feature whose point was selected in the Point Information command. The result is similar to that of the Isolate Feature command. |
