Object Actions Tab

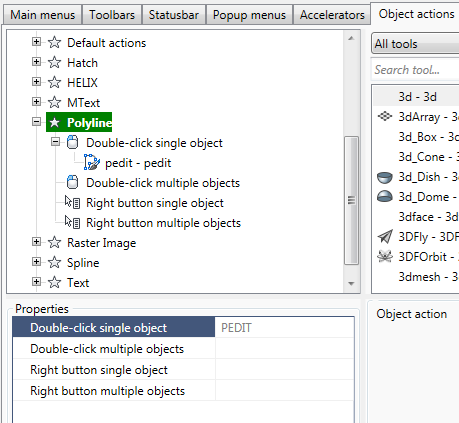

The Object Actions tab of the Customize user interface dialog assign the commands and actions to be performed when using mouse buttons for the object selected on the acreen:

· Double-click on single object

· Double-click on multiple objects

· Context menu on single object

· Context menu on multiple objects

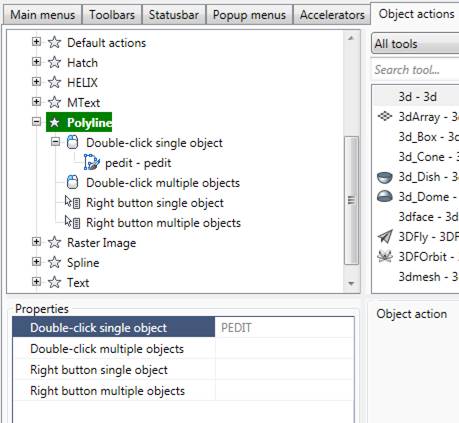

CAD drafting Object Actions Tab 0

To add a command for double-clicking with the left mouse button on one or more objects, drag the command from the list of tools on the right to the desired action.

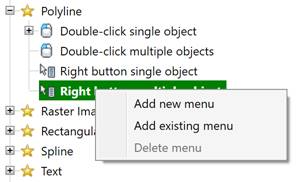

To add a context menu for single or multiple selection, select Add new menu or Add existing menu from the context menu of the desired action:

CAD software Object Actions Tab 1
