Manage Block Marker Attributes

Managing Block Marker Attributes

CAD drafting Manage Block Marker Attributes 0   Ribbon: Topoplan – Utilities > CAD software Manage Block Marker Attributes 1 Managing Block Marker Attributes

CAD drawing Manage Block Marker Attributes 2   Menu: Topoplan – Utilities > CAD drafting Manage Block Marker Attributes 3 Managing Block Marker Attributes

CAD software Manage Block Marker Attributes 4   Toolbar: Topoplan Utilities > CAD drawing Manage Block Marker Attributes 5 Managing Block Marker Attributes

CAD drafting Manage Block Marker Attributes 6 Command line: NG_H_TO_ATTRIBUTE

The command copies the Z coordinate value of a block to its attribute and vice versa, and also swaps the Z coordinate and attribute values.

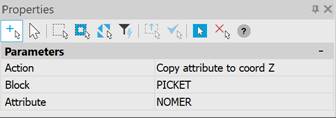

The command options are set in the Properties bar.

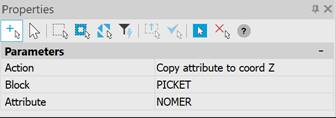

CAD software Manage Block Marker Attributes 7



Action

Copy attribute to coord Z - fills the value of the Z mark with the value of the selected block attribute (only if the attribute has a numeric value).

Copy coord Z to attribute - fills the selected block attribute with the Z mark value.

Swap attribute and coord Z – is selected in the case when the attribute value and the Z mark value should be swapped.

Block

Block selection.

Attribute

Attribute selection.



↑
