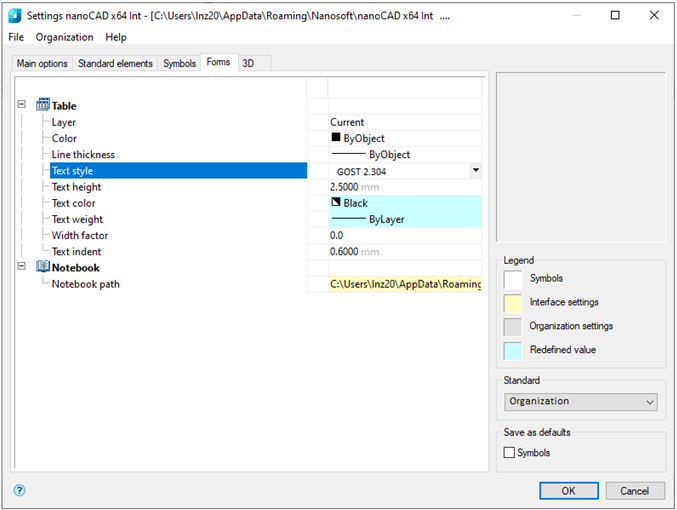

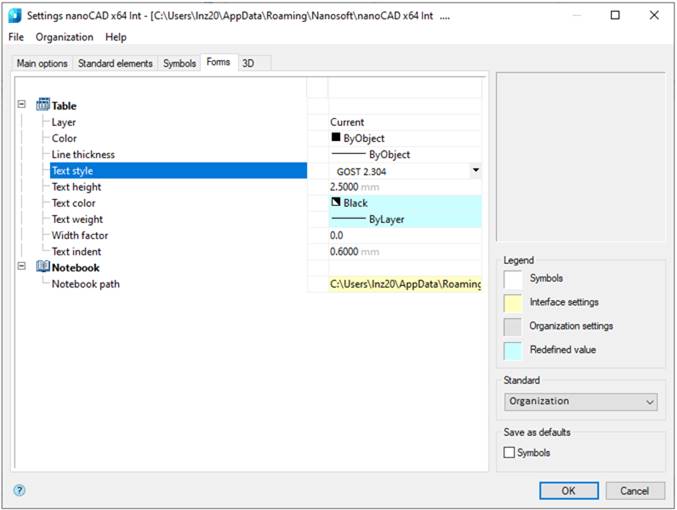

Forms Tab

The Forms tab is designed to set parameters of text parts of tools to create standard drawing elements.

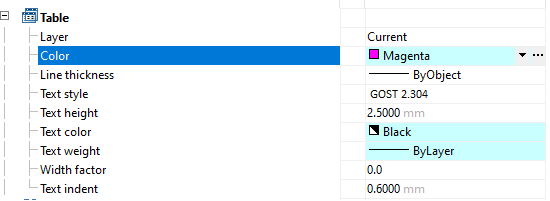

Table

Setting display parameters of nanoCAD tables.

Layer

Specifies the layer on which the inserted (created) table will be located by default.

Color

Sets the color for table elements.

Line thickness

Assigns thickness to border lines of table cells.

The By layer value corresponds to the standard thickness for the layer on which the tables are located by default. The By block value corresponds to the standard thickness for the block that contains the table. Selecting By Object value sets the thickness specified manually for table objects. The Default value corresponds to the default line thickness for this drawing.

Text style

Sets the standard text style inside the table.

Text height

Allows you to set a standard value for the text height. You can select the height from a set of standard values according to GOST 2.304 or enter your own height value manually.

Text color

Controls the choice of text color in tables. You can choose a color from a standard set of values or set your own color from the built-in palette.

Text weight

Allows you to select the line thickness of text characters in the table. The By layer value corresponds to the standard thickness for the layer on which the tables are located by default. The By block value corresponds to the standard thickness for the block that contains the table. Selecting the By object value sets the thickness specified for table objects manually.

The Default value corresponds to the default line thickness for this drawing.

Text indent

Allows you to select the value of the text indentation from the cell borders.

Notebook

Notebook path

The path to the notebook file.
