Embed Raster Image

In nanoCAD there is a mechanism for embedding of raster images. Inserted images saved in external raster files can be embedded and saved in drawing file.

To embed the raster:



1.    Open dialog External References (menu Insert – External References).

2.    Select reference to a raster image.

3.    Click the CAD drafting Embed Raster Image 0 Embed image button.

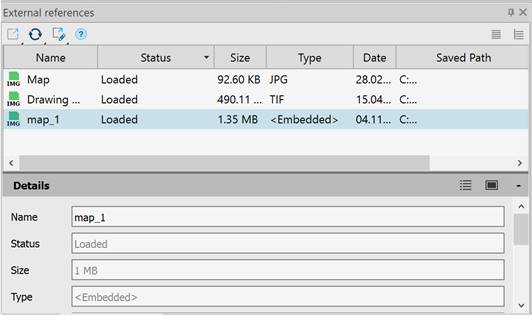

CAD software Embed Raster Image 1

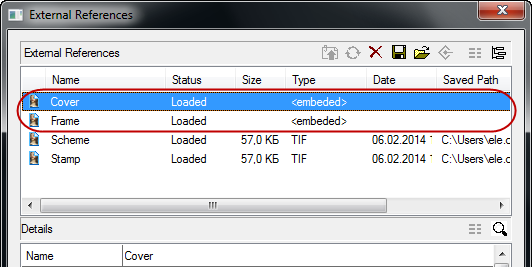

Embedded image has no saved path, and type of reference becomes Embedded.

ATTENTION! Embedded raster images increase the file size greatly.



attention! In programs that do not support the mechanism for embedding bitmap images, there may be problems with their display.

Using CAD drawing Embed Raster Image 2 Save file dialog command and assigning saved path you can make the image inserted as reference again.

↑
