Editing Values of Attributes in a Block Reference

CAD drafting Editing Values of Attributes in a Block Reference 0 Menu: Modify – Object > Attributes > CAD software Editing Values of Attributes in a Block Reference 1 Edit block attributes …

CAD drawing Editing Values of Attributes in a Block Reference 2 Toolbar:Edit 2 – CAD drafting Editing Values of Attributes in a Block Reference 3

CAD software Editing Values of Attributes in a Block Reference 4 Command line: ATTEDIT

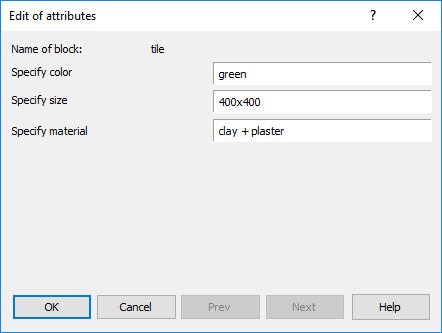

The command opens the Edit of attributes dialog box, where it is possible to change attribute values of the block reference specified in the drawing:

CAD drawing Editing Values of Attributes in a Block Reference 5

The dialog box displays the block name, prompts and enables to edit values of all attributes contained in the block reference.

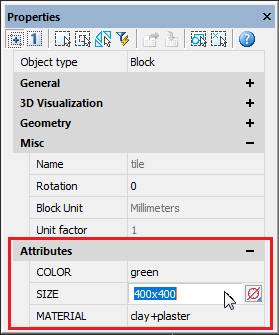

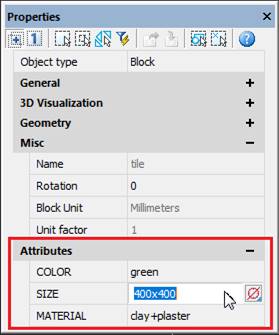

Attribute values of the selected block reference can also be changed on the Properties functional panel in the Attributes section:

CAD drafting Editing Values of Attributes in a Block Reference 6
