Creating Bergstriches

CAD drafting Creating Bergstriches 0 Ribbon: Topoplan – Relief > CAD software Creating Bergstriches 1 Bergstriches

CAD drawing Creating Bergstriches 2 Menu: Ground – Elevation > CAD drafting Creating Bergstriches 3 Bergstriches

CAD software Creating Bergstriches 4 Toolbar: Elevation > CAD drawing Creating Bergstriches 5 Bergstriches

CAD drafting Creating Bergstriches 6 Command line: NG_CREATE_BERGSTRICH

The command will create a bergstrich (in the form of block) at the specified location of the contour.

Contours must first be built and the scale of the topographic map selected.

To create a bergstrich:

1. Run the command.

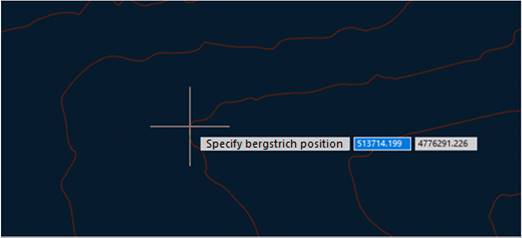

2. In response to the prompt in the command line

Specify bergstrich position:

click the left mouse button in the required place on the contour line.

CAD software Creating Bergstriches 7

3. In the specified place bergstrich will be created in form of block named CONTOUR_BERG.

4. Several bergstriches can be created in succession. Pressing ESC button ends the command.
