Create TIN by Objects

Input data

The objects from which the TIN surface will be created. These can be Lines, Polylines, 2D Polylines, or 3D Polylines

Result type values

SubMesh – creates an object of SubMesh type without the ability to edit nodes;

PolyFace mesh – creates an object of Polyface mesh type, the nodes of which can be edited;

TIN Surfacce – creates a TIN Surface object;

Solids – will create a triangulation model consisting of separate triangle objects of Solid type;

Faces – will create a triangulation model consisting of separate triangle objects of 3D Face type.

Save position of edges

The parameter, when enabled, prevents edges from being rebuilt when creating a TIN surface

Filtrate source points

You can change the number of points that will be used to build create triangulation. To do this, select Yes for the Filtrate source point option, select the type of filtration for Filter Units parameters and set the desired value in the Filter range field. This will create a mesh with fewer number of larger triangles. This accelerates the process of creating a triangulation model. The created model will be less accurate, but its further processing will take less time.

The following filtration types are possible:

·         Points number – the number of points to be used to create a triangulation model. The total number of points can be determined by selectin all objects of Point (or Geopoint, Block) type by which triangulation will be created.

·         Percent of points number – the percent of points that will be used to create a triangulation model. It is convenient to use when you know the minimum percentage of points that allows you to build a mesh of acceptable quality;

·         Maximum error – the maximum distance in drawing units from the surface formed by the bulk of points, beyond which points will be excluded from triangulation. It is convenient to use for creating a triangulation mesh over the earth's surface, automatically filtering out other objects: noises, trees, constructions, etc.

Build boundary from convex hull

When this option is enabled, after creating the triangulation the mesh will be processed. Triangles with an edge length greater than the one specified in the Max edge field and the angle between which is less than the Min triangle angle will be removed.

Only external boundary

This option allows you to apply filtering not to the entire network, but only to triangles on its outer boundary. When this option is enabled, only triangles located on and adjacent to the boundary of the network will be removed during mesh processing

Filtering only on the boundary can be useful when, as a result of triangulation, the distant vertices of the mesh boundary are connected by edges, forming parasitic super elongated narrow triangles.

Max edge units

The length units for the Max edge parameter. Percentage of the units of the maximum face edge in the triangulation model or drawing units (set in the UNITS dialog).

Max edge

The maximum allowed edge length. All triangles with edges longer than this value will be removed from triangulation. A value of zero disables filtering by edge length.

The length is specified as a percentage of the max edge units of the face in the triangulation model or in drawing units (based on the value of the Max edge unit).

Min triangle angle

The minimum angle in the triangle at which it will not be filtered. A zero value disables filtering by angle value. Triangles are filtered by plan angles, as other filtering options also operate plan length values..

This parameter allows you to exclude extended triangles from triangulation.

The value is specified in drawing angular units. If the drawing units are set to Degrees-minutes-seconds or Topographic units, the parameter value is measured in degrees.

Min. triangles

The number of triangles that will be removed. When contouring, many small islands are created from several triangles. Islands with fewer triangles than the specified parameter will be removed.

Generate normals

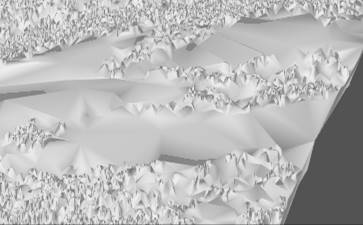

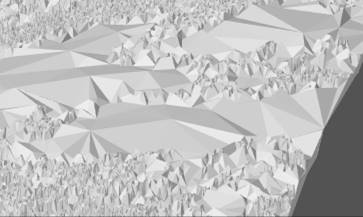

Shading parameter. Calculates normals at the mesh vertices, resulting in a smoother mesh appearance in the Precise view. The option is available only if a mesh is selected as the resulting triangulation object.

Project points to UCS XY plane

When this option is enabled, the triangulation will be created in the XY plane of the user coordinate system. When the option is disabled, the triangulation will be created in the plane of the current view.

Select region

It is used when you need to build a model not by all points, but only by a certain part. In this case, click the button to the right of the Region is not selected value and draw a polygonal area within which the triangulation will be created on the point cloud.

Break for optimization

If the triangulation model turns out to be very detailed (millions of faces), then for the possibility of further convenient work, it will be divided into several meshes. If the parameter is disabled, the model will not be split, a single mesh will be created.

Create layer

When you select Yes, the mesh will be created on a new layer TIN surface.

Apply changes? <Yes> or [Yes/No]:

Yes – the command will be performed taking into account changes in settings made by the user in the current command session.

No – the command will be performed with the settings that displayed right after the command started.

Save – saving settings to the document.

saveDefault – saving settings to the register.

Select objects or [?]

Select one or more objects to create TIN
