Clip Map Underlay

CAD drafting Clip Map Underlay 0    Ribbon: Insert – Maps > CAD software Clip Map Underlay 1 Clip Underlay

CAD drawing Clip Map Underlay 2    Ribbon: Topoplan – Maps > CAD drafting Clip Map Underlay 3 Clip Underlay

CAD software Clip Map Underlay 4   Menu: Topoplan – Maps > CAD drawing Clip Map Underlay 5 Crop Underlay

CAD drafting Clip Map Underlay 6 Command line: CLIPMAP



Visibility of underlays can be partially limited by a clip contour.

After calling the command, you will need to specify the underlay to which the operation will be applied.

Further, points of the clip contour are specified in an interactive mode.

CAD software Clip Map Underlay 7

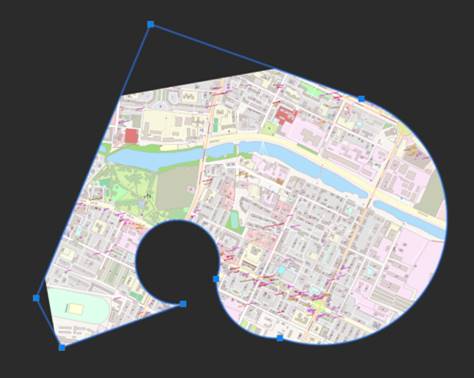

As a result of operation, a clip contour will be created, limiting the visibility of map underlay.

The contour can be edited using grips.

You can turn off the display of the vector border of the contour on the Properties toolbar (Show clip option).

↑
