Block Attribute Manager
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Block Attribute Manager
If a block contains a large number of attributes, it is convenient to use Block Attribute Manager for quick editing of attributes directly in the drawing.
The Manager changes the attributes to define a block (not a reference). To update existing references, use block reference attribute synchronization.
You can edit attribute descriptions in blocks, remove attributes from blocks, and change the order in which attribute values are prompted when inserting a block.
Ribbon: Home, Insert – Block >
Block Attribute Manager
Menu: Edit – Object > Attributes >
Block Attribute Manager
Command line: BATTMAN
The Manager will be launched only in case if at least one block with attributes is available in the drawing.

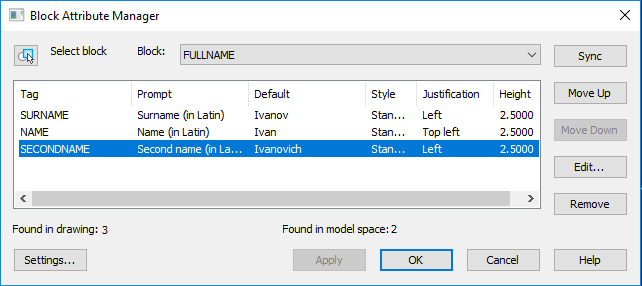

The Manager displays the following information:
Block: - name of the block whose attributes are being edited;
The
Select block button allows you to select on the screen the block for editing attributes. The dialog box temporary closes.
Information for the selected block is displayed below the attribute list:
Found in drawing – the number of block references in the current drawing;
Found in model space – the number of block references in the current tab.
|
Parameters |
Description |
|
Sync |
Updates selected blocks based on changed attribute properties. |
|
Move up |
Moves an attribute up one position. |
|
Move down |
Moves an attribute down one position. |
|
Edit… |

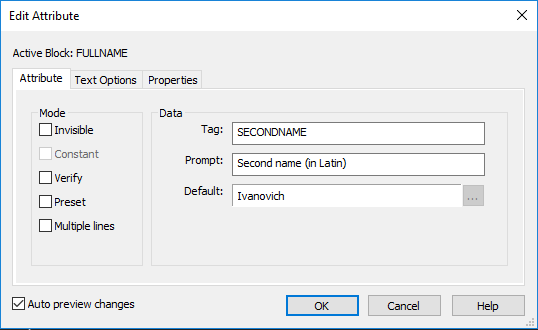

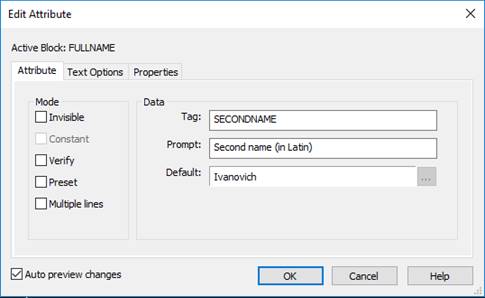

Opens the Edit Attribute dialog for changing the attribute values and parameters:

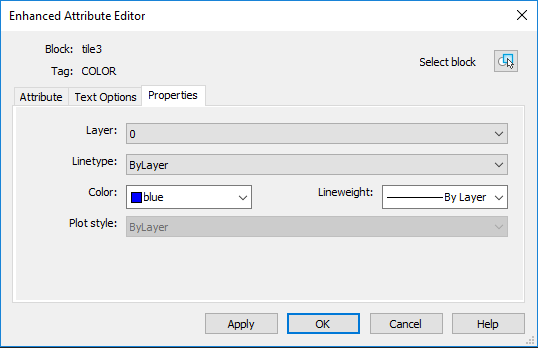

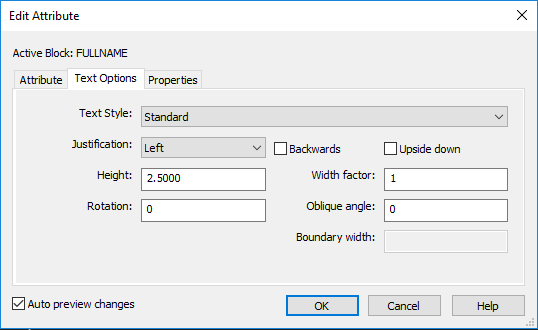

The Attribute tab allows to change Tag, Prompt and Default value of the attribute. Attribute modes: Invisible – disables/enables the attribute’s display on the screen; Constant – an attribute property indicating whether the attribute has a default value (if enabled, the attribute is assigned its default value; if disabled, the attribute can be assigned different values). Verify – enables/disables attribute value validation during the block insertion process; Preset – enables/disables assigning a default value to the attribute; Multiple lines – enables/disables multiline text mode for the attribute. The Text Options and Properties tabs correspond to the tabs in the Block Attribute Editor dialog box. |
|
Remove |
Removes the selected attribute from the block description. |
|
Settings… |

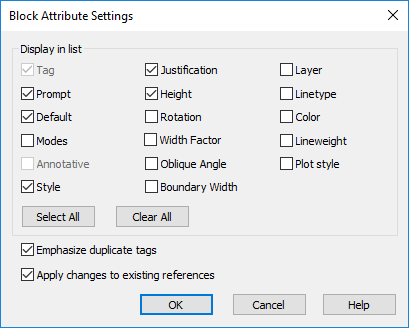

Opens the Block Attribute Settings dialog box
Display in the list – selection of columns that will be displayed in the Block Attribute Manager table: Tag, Prompt, Default, Modes, Annotative, Style, Justification, Height, Rotation, Width Factor, Oblique Angle, Boundary Width, Layer, Linetype, Color, Lineweight, Plot Style. The following abbreviations are used for the Modes column in the table: I – Invisible. The attribute value is not displayed in the drawing’s graphics area; C – Constant. The attribute has a default value that cannot be changed; V – Verify. You are prompted to verify the values assigned to the attribute when inserting a new item into a block; P – Preset. The attribute has a default value when inserting a block; F – Fix Position. The attribute’s position is fixed within the block reference; M – Multiple lines. The attribute is defined as a multiline one and can contain multiple lines of text. Emphasize duplicate tags – enables highlighting of duplicate tags. If enabled, duplicate attribute tags are highlighted in the list. Apply changes to existing references – enables updating all existing blocks whose attributes have been changed. If disabled, only new blocks created after changing the attribute definitions are updated. |
|
Remove |
Removes the selected attribute from the block description. |
