Background Mask for Multiline Text

Background Mask

CAD drafting Background Mask for Multiline Text 0       Ribbon: Annotate - Text > CAD software Background Mask for Multiline Text 1 Hiding the Background

CAD drawing Background Mask for Multiline Text 2       Toolbar: Modify 2 – CAD drafting Background Mask for Multiline Text 3

CAD software Background Mask for Multiline Text 4 Command line: BACKGROUNDMASK

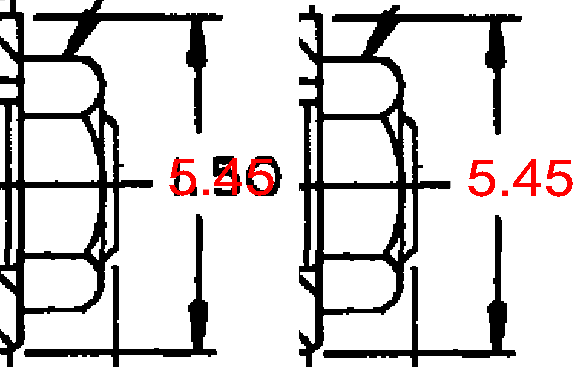

You can specify a background mask for multiline text, for multiline multileader text and for multiline block attribute text. A background mask allows text to appear on an opaque background of a specified size and color.

CAD drawing Background Mask for Multiline Text 5

A mask is created for the entire text area. When you resize the text area using grips, the mask (background) is also resized.

Objects can be selected before or after command execution. This allows you to apply the command to several selected heterogeneous objects at once (multiline texts, multileaders, block attributes).

To create a background mask:



Select the multiline text, multiline multileader text or multiline block attribute text.

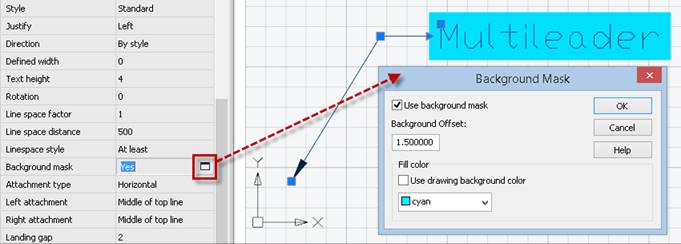

on the Properties panel, click the CAD drafting Background Mask for Multiline Text 6 button to the right of the Background Mask parameter (the Text section):

CAD software Background Mask for Multiline Text 7

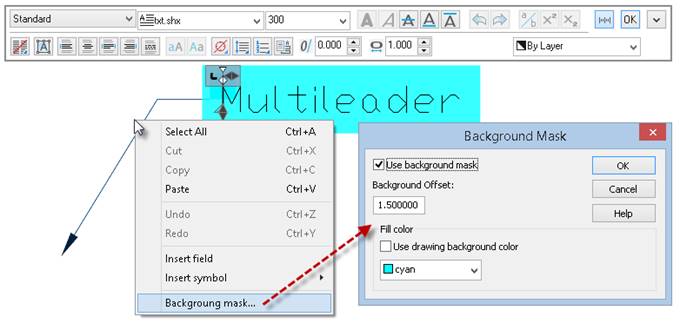

Or select the Background Mask item in the context menu, while editing multiline text (or multileader multiline text, or attribute multiline text):

CAD drawing Background Mask for Multiline Text 8

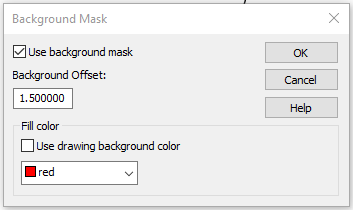

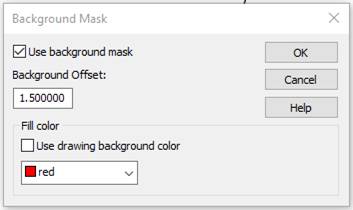

In the dialog that opens, configure the parameters.

CAD drafting Background Mask for Multiline Text 9

Options:

Use Background Mask

Whether or not to hide the background of multiline text.

Background Offset

The size of the mask margins around the text area.

The coefficient value is tied to the height of the text. If the coefficient value is 1, then the size of the mask corresponds to the size of the text area. With a value of 1.5, the background extends out of the text area by a distance equal to half the height of the text. Cannot be less than 1.

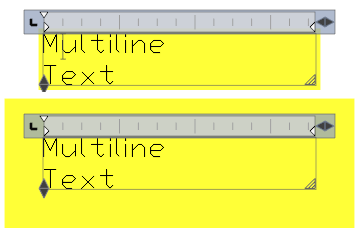

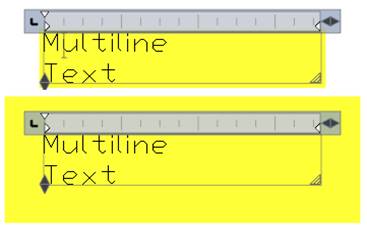

Below is the result for values 1 and 2.8.

CAD software Background Mask for Multiline Text 10

Fill color

Mask color. Use the current background color or set your own.

To display the text area mask frame on the screen, in the Properties bar, in the Text group, for the Text frame property, select Yes from the drop-down list:

CAD drawing Background Mask for Multiline Text 11
