Add Vertex

Adding a Vertex

CAD drafting Add Vertex 0   Ribbon: TopoplanModify TIN > CAD software Add Vertex 1 Add vertex

CAD drawing Add Vertex 2   Menu: GroundEditing TIN > CAD drafting Add Vertex 3 Add vertex

CAD software Add Vertex 4   Toolbar: Editing TIN > CAD drawing Add Vertex 5 Add vertex

CAD drafting Add Vertex 6 Command line: NG_MESH_VERTEX_ADD

The command adds a new vertex to the existing surface (Submesh or Polyface mesh). The position of the contour lines is also updated if they were built.



To add a vertex:



1.    Set the Top View.

2.    Run the command.

3.    In response to the prompt in the command line, select Submesh or Polyface mesh:

Specify new vertex position

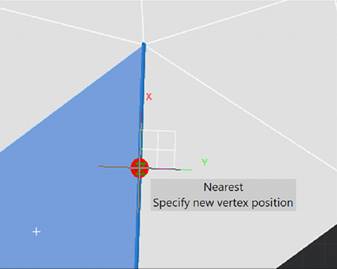

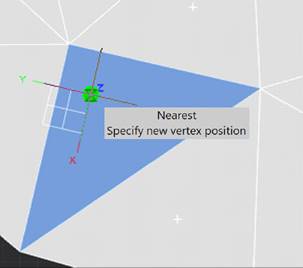

4.    Click cursor inside a mesh triangle to add a new vertex in the specified place. A vertex can be added with a reference to some objects.

5.    Select whether to project the point onto the surface or use its actual height after specifying.

The anchor point elevation is 0.00. The elevation of the point projected onto the surface is 193.62. Specify vertex elevation <193.62> or [Snap/Project]: Project

Surface before adding a vertex

Surface with added vertex

CAD software Add Vertex 7

CAD drawing Add Vertex 8

6.    Several vertices can be added in succession. Pressing ESC button ends the command.
