nanoCAD 3DScan Help

Isolating All Features

CAD drafting Isolating All Features 0      Ribbon: 3DScan – Features > CAD software Isolating All Features 1 Isolate All Features

CAD drawing Isolating All Features 2       Menu: 3DScan – Features > CAD drafting Isolating All Features 3 Isolate All Features

CAD software Isolating All Features 4       Toolbar: Features 3DScan > CAD drawing Isolating All Features 5 Isolate All Features

CAD drafting Isolating All Features 6 Command line: NPC_ISOLATE_ALL_FEATURES

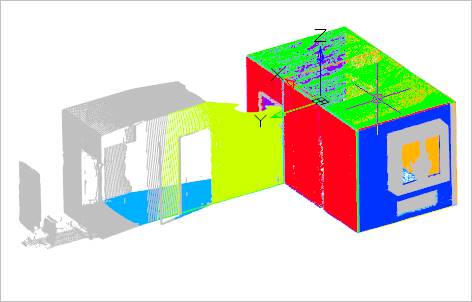

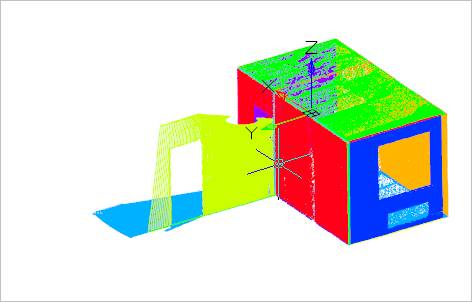

The command displays all features, hiding unrecognized parts of the cloud. If any cloud features have been hidden, their display is restored.

CAD software Isolating All Features 7

CAD drawing Isolating All Features 8



↑
