Hiding All Features

CAD drafting Hiding All Features 0      Ribbon: 3DScan – Features > CAD software Hiding All Features 1 Hide All Features

CAD drawing Hiding All Features 2       Menu: 3DScan – Features > CAD drafting Hiding All Features 3 Hide All Forms

CAD software Hiding All Features 4       Toolbar: Features 3DScan > CAD drawing Hiding All Features 5 Hide All Features

CAD drafting Hiding All Features 6 Command line: NPC_HIDE_ALL_FEATURES

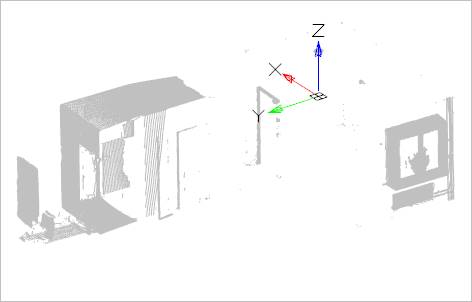

The command hides the display of all features, leaving unrecognized parts of the cloud visible.

CAD software Hiding All Features 7

CAD drawing Hiding All Features 8



↑
