nanoCAD 3DScan Help

Verification of the Earth

CAD drafting Verification of the Earth 0    Ribbon: 3DScan – Classification > CAD software Verification of the Earth 1 Verification of the Earth

CAD drawing Verification of the Earth 2    Menu: 3DScan – Classification > CAD drafting Verification of the Earth 3  Verification of the Earth

CAD software Verification of the Earth 4    Toolbar: Classification 3DScan > CAD drawing Verification of the Earth 5  Verification of the Earth

CAD drafting Verification of the Earth 6 Command line: PC_GROUND_VERIFY



The command allows you to verify classified earth in a point cloud.

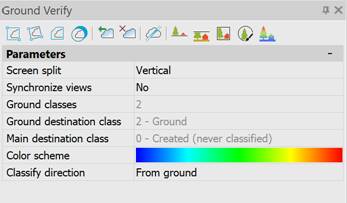

The command parameters are available for editing in the Ground verify functional bar.

CAD software Verification of the Earth 7

Screen split

·         Screen split modes.

Synchronize views

·         To reduce the number of steps when checking large and complex point clouds. The navigation mode is set to either independent (without synchronization) or synchronized.

Ground classes

·         Existing cloud classes that will be involved in earth classification.

Ground destination class

·         The class to be assigned to the recognized ground points.

Main destination class

·         The class to be assigned to recognized model points.

Color scheme

Colors of the future surface.

A single click will open a drop-down menu:

CAD drawing Verification of the Earth 8

·         Save gradient – saves the gradient in the current document.

·         Export gradients – saves the gradient to an XML file.

·         Import gradients – imports a gradient from an XML file.

Double-clicking the gradient image opens the gradient editor.

Classify direction

·         Selection of classification direction.

The Ground verify window has a built-in toolbar, which is located under the window title.

CAD drafting Verification of the Earth 9

CAD software Verification of the Earth 10 Cloud clipping commands.

CAD drawing Verification of the Earth 11 Clip undo commands. The commands cancel point cloud clipping called from the Ground verify panel.

CAD drafting Verification of the Earth 12 Section of a cloud in an arbitrary plane.

CAD software Verification of the Earth 13 Point cloud classification commands.

CAD drawing Verification of the Earth 14 Coloring a cloud by height (Classify by height).



CAD drafting Verification of the Earth 15

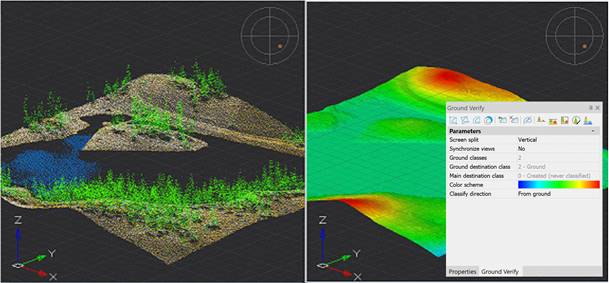

To display the mesh coloring by height, the display of textures must be enabled in the visual style of the viewport (the Show textures checkbox in the visual style editor).



↑
