Recolor a Cloud by Deviation

Recoloring a Cloud by Deviation

CAD drafting Recolor a Cloud by Deviation 0    Ribbon: Point Clouds – Settings > CAD software Recolor a Cloud by Deviation 1 Recolor Clouds by Deviation

CAD drawing Recolor a Cloud by Deviation 2    Menu: Point Clouds – Settings > CAD drafting Recolor a Cloud by Deviation 3 Recolor Clouds by Deviation

CAD software Recolor a Cloud by Deviation 4    Toolbar: Settings Point Clouds 3DScan > CAD drawing Recolor a Cloud by Deviation 5 Recolor Clouds by Deviation

CAD drafting Recolor a Cloud by Deviation 6CAD software Recolor a Cloud by Deviation 7 Command line: PC_ASSIGN_COLOR_BY_DEVIATION

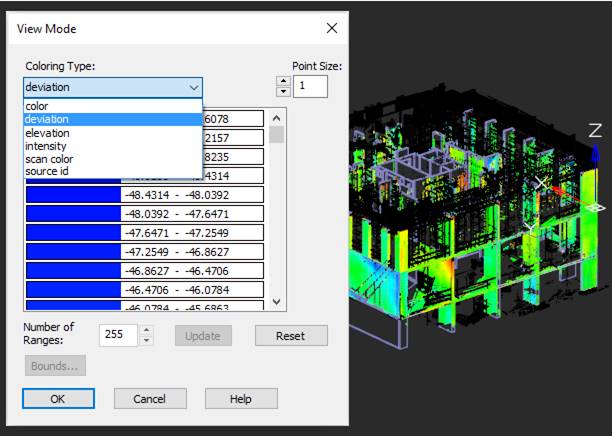

The command recolors the point cloud according to the values of the Deviation attribute (the Deviation coloring type): the original scan color of the cloud (Scan Color attribute values) is replaced with the colors of the Deviation attribute values.

CAD drawing Recolor a Cloud by Deviation 8

After that, coloring the cloud in the document (cloud view mode) automatically switches to coloring by scan color:

CAD drafting Recolor a Cloud by Deviation 9

The command can be applied to a cloud having the Deviation attribute. Deviation is a calculated parameter. Designed to save an estimate of the discrepancy between the model and the point cloud that describes it. This attribute is created as a result of the Comparison command.



The command options are set on the Properties bar.

Options:

Intervals

Splitting the entire range of values into a given number of intervals. Each interval of values will get its own color.

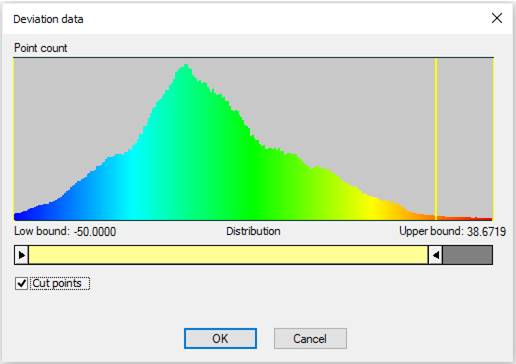

Histogram

Display of deviations histogram.

CAD software Recolor a Cloud by Deviation 10

Command prompts:

Apply changes [Yes/No/Save/saveDefault] <Yes>

Yes – the command will be performed taking into account changes in the settings made by the user in the current session of the command work.

No – the command will be performed with the settings displayed immediately after running the command.

Save – saving settings to a document.

saveDefault – saving settings to the registry.

Attention! Executing this command will lead to scan color data loss. Continue? <Yes> or [Yes/No]:

Yes – recoloring a cloud.

No – cancellation of recoloring and completion of the command work.



↑
