Floor Plan

CAD drafting Floor Plan 0 Ribbon: 3DScan – Features > CAD software Floor Plan 1 Floor Plan

CAD drawing Floor Plan 2 Menu: 3DScan – Vectorization > CAD drafting Floor Plan 3 Floor Plan

CAD software Floor Plan 4 Toolbar: Features 3DScan > CAD drawing Floor Plan 5 FloorPLan

CAD drafting Floor Plan 6 Command line: PC_FLOOR_PLAN

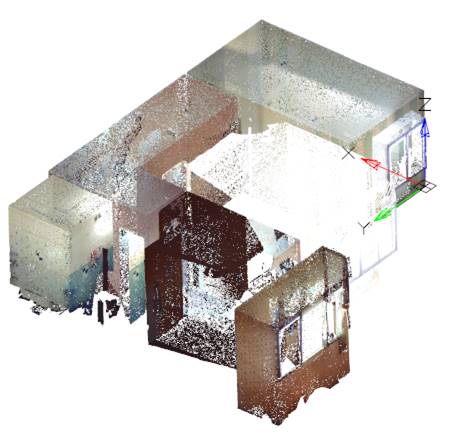

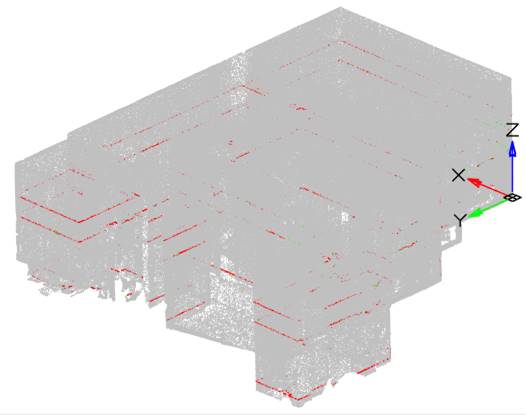

Creating a vector floor plan from point cloud data. A point cloud can consist of an exterior scan of a building and scans of its interior.

CAD software Floor Plan 7

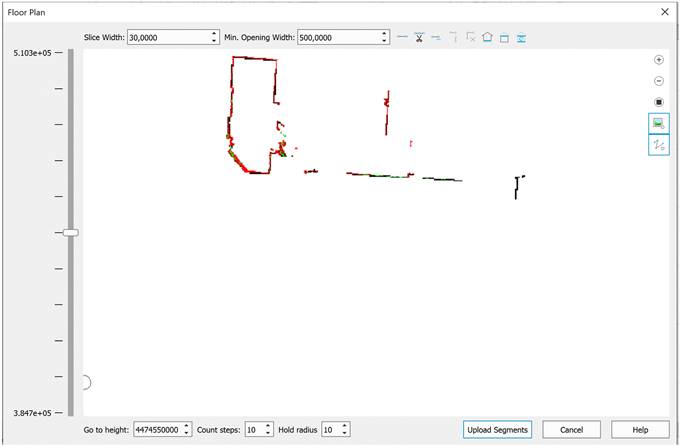

The command opens the Floor plan dialog box.

CAD drawing Floor Plan 8

The dialog allows you to configure the parameters of the point cloud section performed at a specified level from the earth surface, and to vectorize it.

The preview window displays the point cloud section, which was obtained as a result of the specified settings. The window allows you to zoom, pan the image and work with the vector geometry previously recognized in the section.

CAD drafting Floor Plan 9

Options:

Slice width:	The width of the cloud cross-sections (layers) to be vectorized. Excessive section width can lead to noise and thickening of contours, to the appearance of unnecessary contours and distortion of the topology, as a result of excess cloud points getting into the section. Insufficient width makes the contours thin and discontinuous due to the lack of cloud points falling into the section.
Min. opening width:	Min. opening width is a parameter that affects the combination of vectors during vectorization. If the specified distance is less than the Minimum Width value, then the vectors will be combined into one, if greater, then the gap will be taken into account.
Vertical slider	The level from the ground at which the point cloud is cut. Section plane is parallel to the XY plane of the current UCS and perpendicular to the Z axis of the current UCS
Segment by two points	Allows you to create a vector segment by specifying two arbitrary points. In the preview window, specify the start and end point of the segment. The segment is created for the current section.
Split segment	Allows you to split a vector segment in the specified location.
Change segment length	The mode to change the lengths of vector segments. With the button pressed, you can move the vertex of any segment along its length. To exit the mode, release the button.
Connect selected segments	Connects the ends of preselected segments. The button becomes active when two or more vector segments are selected in the preview window.
Delete selected vectors	Allows you to delete selected vectors.
	Vectorizes the selected section according to the result displayed in the preview window. Vector objects are created at a height corresponding to the selected section.
