Flat Texture Overlay

Texturing and Calcultions

CAD drafting Flat Texture Overlay 0   Ribbon: 3DScanTexturing and Calculations > CAD software Flat Texture Overlay 1 Ortho Texture Overlay

CAD drawing Flat Texture Overlay 2   Menu: 3DScanTexturing > CAD drafting Flat Texture Overlay 3 Ortho Texture Overlay

CAD software Flat Texture Overlay 4   Toolbar: Texturing and Calculation > CAD drawing Flat Texture Overlay 5 Orthogonal Texture

CAD drafting Flat Texture Overlay 6   Toolbar: Meshes 3DScan > CAD software Flat Texture Overlay 7 Ortho Texture Overlay

CAD drawing Flat Texture Overlay 8 Command line: PC_ORTHO_TEXTURE



The command creates a textured surface, if a drawing contains a point cloud with the Scan color attribute (its display should be enabled) and the surface created according to this point cloud. The command can be used to create a photorealistic model of the earth's surface.



After starting the command, specify the Mesh object in the drawing.



The command options are set on the Properties bar.

Options:

Texture Size

Generated texture size in pixels.

Format

The BMP, JPG, PNG and TIFF formats are available.

From Ground

If Yes, the color of the cloud points will be projected onto the surface, as if looking from the ground. If No is selected, the color will be projected as if viewed from above.



Command prompts:

Apply changes? <Yes> or [Yes/No/Save/saveDefault] <Yes>:

Yes – the command will be performed taking into account changes in the settings made by the user in the current session of the command work.

No – the command will be performed with the settings displayed immediately after running the command.

Save – saving settings to a document.

saveDefault – saving settings to the registry.

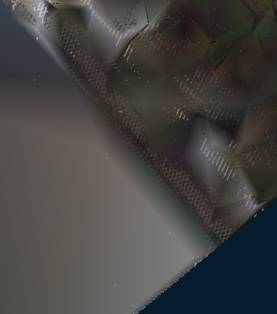

Mesh before texturing

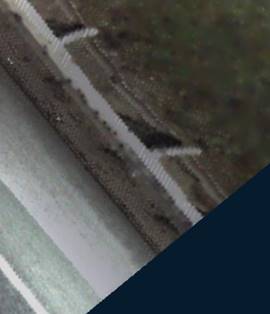

Mesh after texturing

CAD drafting Flat Texture Overlay 9

CAD software Flat Texture Overlay 10

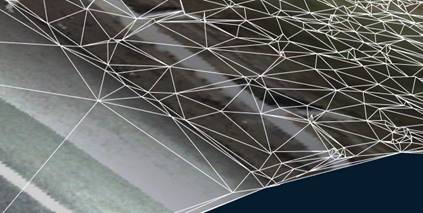

After removing the point cloud from the drawing, the surface retains the texture:

CAD drawing Flat Texture Overlay 11
