Fit Line
-
-
-
-
-
-
-
Fit Line
Ribbon: 3DScan – Features >
Fit Line
Menu: 3DScan – Features >
Fit Line
Toolbar: Features 3DScan > Fit Line
Command line: PC_FIT_LINE
The command creates a line fit into the cloud/section displayed in the current viewport.
The command analyzes a visible part of the cloud in the current viewport, therefore, before starting the command, use the crop and section commands to leave the part of cloud the line should be fit into.
Command prompts:
|
Apply changes? <Yes> or [Yes/No/Save/saveDefault] <Yes>: |
Yes – the command will be performed taking into account changes in the settings made by the user in the current session of the command work. No – the command will be performed with the settings displayed immediately after running the command. Save – saving settings to a document. saveDefault – saving settings to the registry. |

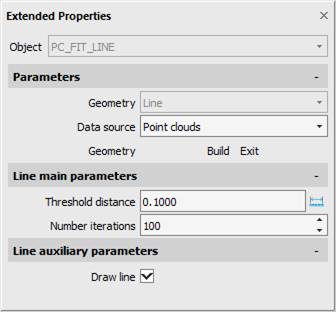

The command options are set on the Properties bar.
Options:
|
Number of iterations |
The number of iterations for defining the line size and location. The larger the value, the longer the calculation, and the greater the probability of finding the correct size and location of the line. The parameter value should be more than 0. |
|
Threshold distance |
The maximum value of deviation in location of the cloud points from the ideal one. I.e. spread of coordinates that can be neglected to assume that points belong to one line, surface, edge, etc. The threshold distance should be the greater, the less accurately the scan is performed, and the worse the object’s surfaces and edges are expressed. At the same time, with an excessive increase of the threshold distance the probability of an inaccurate location of the line increases. |
|
Draw line |
Specify whether to create the line in this session of the command work, or the command was started only in order to modify its parameters. |
