Changing Elevation

      Ribbon: 3DScan > Meshes >  Change Elevation

      Menu: 3DScan > Meshes >  Change Elevation

      Toolbar: Meshes 3DScan >  Change Elevation

   Command line: PC_MESH_VERTEX_MOVE_H



The command changes elevation (Z coordinate) of a node of an existing surface (Submesh or Polyface mesh) and rebuilds triangulation.

To change elevation:



1.      Run the command.

2.      In response to the prompt in the command line:

Select vertex to change elevation or [?]:

select a vertex. When you hover the cursor over the mesh node, it is highlighted in red.

3.      After specifying the node, the prompt follows:

Elevation of this vertex is 200.36. Specify new elevation.

where 200.36 value is the node elevation. You need to enter a new elevation in the drawing units and press Enter.

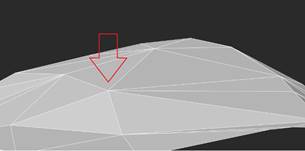

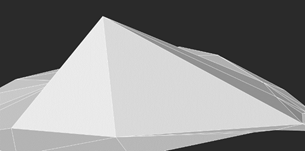

The surface vertex whose elevation should be changed	Surface after changing the vertex elevation

Elevations of several vertices can be changed in succession. Pressing ESC button ends the command.
