Adding an Edge

CAD drafting Adding an Edge 0      Ribbon: 3DScan > Meshes > CAD software Adding an Edge 1 Add Mesh Edge

CAD drawing Adding an Edge 2      Menu: 3DScan > Meshes > CAD drafting Adding an Edge 3 Add Mesh Edge

CAD software Adding an Edge 4      Toolbar: Meshes 3DScan > CAD drawing Adding an Edge 5 Add Mesh Edge

CAD drafting Adding an Edge 6   Command line: PC_MESH_EDGE_ADD

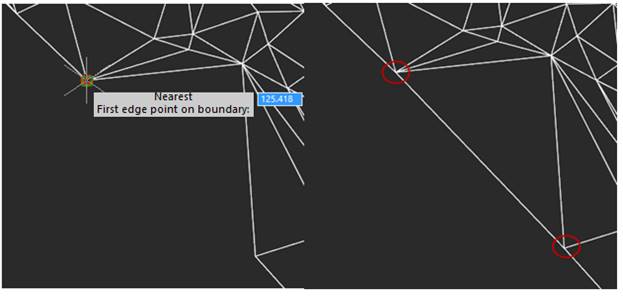

The command adds a new edge to an existing surface (SubMesh or Polyface Mesh) at its boundary. An edge can only be added on a non-convex boundary (inner or outer) so that a new triangular face can be created without disturbing the 2.5D mesh.

CAD software Adding an Edge 7

The position of several faces can be successively changed. Pressing the ESC button closes the command.

↑
