UTILITIES

Creating a hatch

CAD drafting UTILITIES 0Main menu: Construction - Utilities - CAD software UTILITIES 1Create hatch.

CAD drawing UTILITIES 2Toolbar: Utilities - CAD drafting UTILITIES 3Create hatch.

CAD software UTILITIES 4Command line: SPHPATTERN.

In nanoCAD Construction  23 it is possible to create hatches according to a given pattern - a sketch using the CAD drawing UTILITIES 5"Create hatch" tool. The hatch pattern created with it is written as an independent * .pat file and can be used in other projects or by other users.

Procedure

1.Create a border for the hatch sketch. Construct a 300x300mm rectangle and place its bottom-left corner at the origin of coordinate system 0,0,0. The sketch area must be at the origin of the coordinate system. Overall dimensions of the sketch area should not be more than 300x300mm.

CAD drafting UTILITIES 6

2. Sketch one element of the future hatch. The sketch needs to be done within the created rectangle. The sketch should only be done with lines. It is not allowed to sketch with arcs, circles. It is recommended to approximate curved objects in polylines without arc segments. Sketch polylines must be exploded into line segments.

CAD software UTILITIES 7

3. Assign a different color to each section of the sketch. The sketch should be done with segments of different colors. The hatch tool recognizes the periodicity in the sketch by the color of the lines.

CAD drawing UTILITIES 8

4. Create an array of sketches within a rectangle. The sketch must follow an explicit periodicity. The sketch must include at least three repeating fragments of the future hatching.

CAD drafting UTILITIES 9

5. Call the command  CAD software UTILITIES 10"Create hatch".

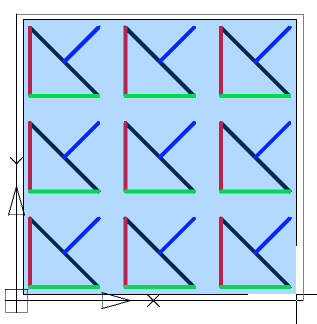

6. Create an array of sketches within a rectangle. The sketch must follow an explicit periodicity. The sketch must include at least three repeating fragments of the future hatching.

CAD drawing UTILITIES 11

7. Press the "Enter" key. The process of object recognition and analysis will begin. During recognition, gaps in sketch lines are automatically determined, if in the selected pattern the line break is outside the selection boundary, the line will be defined in the hatch as continuous. If the sketch does not meet the conditions, a message box will appear, otherwise the file save dialog.

8. Correct the errors indicated in the message. Repeat step 5 - step 7.

9. In the file save dialog specify the path to the hatch file.

Important!

You cannot use the names "Acad.pat", "Acadiso.pat" as the name of the sample file. It is recommended to save in C:\ProgramData\Nanosoft\nanoCAD Construction  23\SHX

10. The custom hatch will be created. The hatch created with the CAD drafting UTILITIES 12"Create hatch" tool fully accepts all the properties of the nanoCAD hatch: associativity, the ability to change the scale, the angle of inclination, overlay with a closed tolerance.

Important!

A drawing file * .dwg that used a unique hatch must be transferred to another user along with the * .pat file of the hatch pattern. For a successful translation, use the (eTransmit) "Generate Set" command.

Objects numeration

CAD software UTILITIES 13Main menu: Construction - Utilities - CAD drawing UTILITIES 14Objects numeration.

CAD drafting UTILITIES 15Ribbon: Construction - Utilities - CAD software UTILITIES 16Objects numeration.

CAD drawing UTILITIES 17Toolbar: CAD drafting UTILITIES 18Objects numeration (on toolbar  "Utilities").

CAD software UTILITIES 19Command line: SPNUMOBJ.

The command finds all specified objects with attributes and numbers it according to a given algorithm.

Procedure

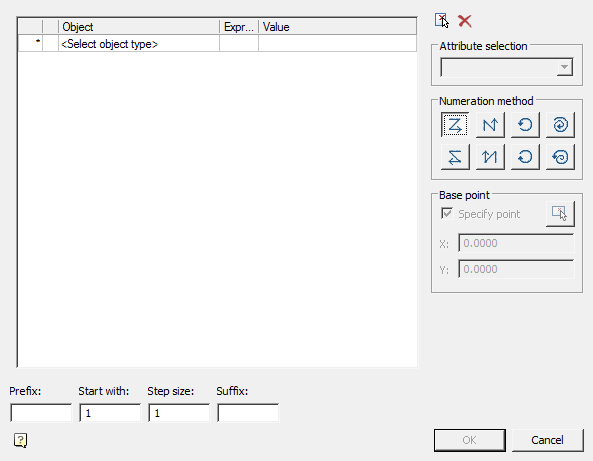

    1.    Call the team. The "Object Numbering" dialog opens.

CAD drawing UTILITIES 20

    2.    Select objects. Select an object using the quick selection. All objects that have text editable attributes (block, database object, universal marker, etc.) can be selected.

CAD drafting UTILITIES 21

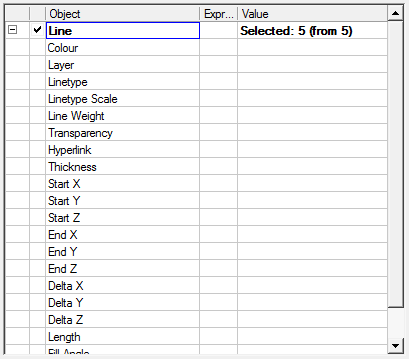

After selecting an object, a list of attributes common to the selected objects and available for editing is formed.

Additional list management commands:

CAD software UTILITIES 22Set selection - the command allows you to specify objects in the drawing.

CAD drawing UTILITIES 23Reset conditions - command clears the list of conditions.

    3.    Select the attribute in which the result of numbering will be recorded.

CAD drafting UTILITIES 24

    4.    Select the numbering method:

CAD software UTILITIES 25- from left to rigth, from top to bottom. When choosing this method, the command compares the coordinates of points X and Y, respectively, starts numbering from the highest and leftmost objects to the lowest and right relative to the base point.

CAD drawing UTILITIES 26- from bottom to top, from left to right. When choosing this method, the command compares the coordinates of points X and Y, respectively, starts numbering from the lowest and leftmost of the entire object to the highest and right relative to the base point.

CAD drafting UTILITIES 27- from rigth to left, from top to bottom. When choosing this method, the team compares the coordinates of points X and Y, respectively, starts numbering from the topmost and to the right of the entire object to the lowest and leftmost relative to the base point.

CAD software UTILITIES 28- from bottom to top, from right to left. When choosing this method, the command compares the coordinates of points X and Y, respectively, starts numbering from the lowest and most right of the entire object to the highest and left relative to the base point.

CAD drawing UTILITIES 29- radial anticlockwise. When choosing this method, the command compares the coordinates of points in the polar coordinate system, the distance from the center (specified by the user base point) and the angle between the zero direction (positive X-axis direction). Numbering is counterclockwise. When this method is selected, the selection of the base point becomes available.

CAD drafting UTILITIES 30- radial clockwise. When choosing this method, the command compares the coordinates of points in the polar coordinate system, the distance from the center (specified by the user base point) and the angle between the zero direction (positive X-axis direction). Priority in comparison has an angle. Numbering is clockwise. When this method is selected, the selection of the base point becomes available.

CAD software UTILITIES 31- spiral anticlockwise from center. When choosing this method, the command compares the coordinates of points in the polar coordinate system, the distance from the center (specified by the user base point) and the angle between the zero direction (positive X-axis direction). Priority when comparing has distance from the center. The numbering is counterclockwise from the center. When this method is selected, the selection of the base point becomes available.

CAD drawing UTILITIES 32- spiral clockwise to center. When choosing this method, the command compares the coordinates of points in the polar coordinate system, the distance from the center (specified by the user base point) and the angle between the zero direction (positive X-axis direction). Priority when comparing has distance from the center. Numbering is clockwise to the center. When this method is selected, the selection of the base point becomes available.

    5.    Indicate a base point if necessary. The base point is indicated either by entering the X and Y coordinates, or by pointing to the screen. When cocking the "Specify point" checkbox, the point is indicated after pressing the "OK" button.

CAD drafting UTILITIES 33

    6.    Customize the brand. The formation of the brand comes from three parts. The prefix and suffix is specified in the editable field. And the brand value itself is calculated based on the initial value entered by the user and the step between subsequent values.

CAD software UTILITIES 34

    7.    Click "OK."

    8.    If the "Specify point" checkbox has been set, specify the base point in the drawing.

    9.    Numbering will be made.

Measurements

CAD drawing UTILITIES 35Main menu: Construction - Utilities - CAD drafting UTILITIES 36Measure.

CAD software UTILITIES 37Ribbon: Construction - Library objects - CAD drawing UTILITIES 38Measure.

CAD drafting UTILITIES 39Toolbar: CAD software UTILITIES 40Measure (on toolbar  "Utilities").

CAD drawing UTILITIES 41Command line: SPMEASURE.

Measurements or tool with Mark drawing is designed to extract various properties of objects in the drawing.

After selecting the command a dialog box value picker opens.

CAD drafting UTILITIES 42

CAD software UTILITIES 43Measure distance. Measures the distance between two points, radius or diameter. Switching the measurement method is via the context menu.

CAD drawing UTILITIES 44Measure angle. Measures the angle.

CAD drafting UTILITIES 45Measure Perimeter. Measure the perimeter of the closed area, the length of a closed polyline or circle.

CAD software UTILITIES 46Measure area. Measures the area of the closed area. Select an area in two ways: 1 - Click inside the closed loop, 2 - Click on the closed polyline or circle.

CAD drawing UTILITIES 47Complex area. Measures the area of several loops. Selecting the area is carried out: 1 - Click to specify the first closed loop, 2 - Click to specify the second closed loop 3 - Press Enter to complete the command.

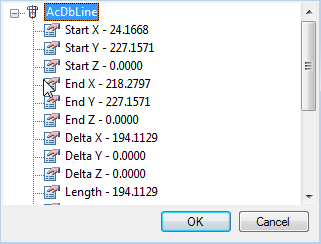

CAD drafting UTILITIES 48Take from property. Allows you to get the value of the parameter selected in the drawing object nanoCAD Construction 23.

CAD software UTILITIES 49

CAD drawing UTILITIES 50Take from text. Returns the value of the selected single-line or multi-line text.

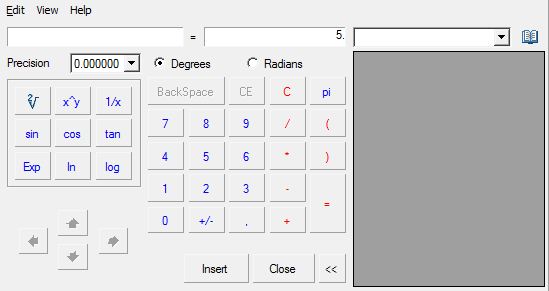

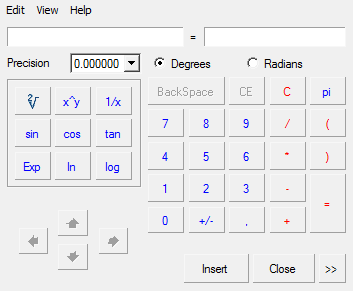

CAD drafting UTILITIES 51Calculate. Opens calculator.

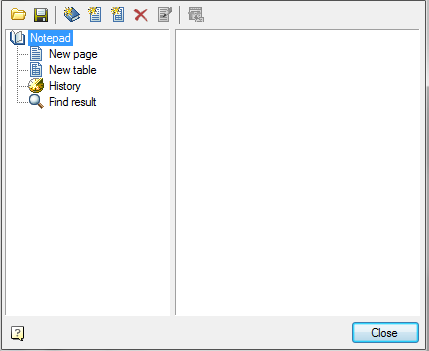

CAD software UTILITIES 52Take from notes. Opens the notebook.

The measured values are displayed in the dialog box.

If universal measuring time was part of a command (for example, the dialog box nanoCAD Construction 23 text context menu command), the measured value is transmitted to the command being executed.

Fragment Copy

CAD drawing UTILITIES 53Main menu: Construction - Utilities - CAD drafting UTILITIES 54Fragment copy.

CAD software UTILITIES 55Ribbon: Construction - Utilities - CAD drawing UTILITIES 56Fragment copy.

CAD drafting UTILITIES 57Toolbar: CAD software UTILITIES 58Fragment copy (on toolbar  "Utilities").

CAD drawing UTILITIES 59Command line: SPCOPY.

The command is used to create remote views of the drawing.

    1.    Select the drawing center point for the detail view.

    2.    Select the area of the drawing. In the context menu, you can choose a certain kind of marquee - circle or rounded rectangle. Secure selection click.

    3.    Specify the drawing center remote fragment. available in the context menu command "0-cut" to remove the original objects from the drawing.

Plate Array

CAD drafting UTILITIES 60Main menu: Construction - Utilities - CAD software UTILITIES 61Plate array.

CAD drawing UTILITIES 62Ribbon: Construction - Utilities - CAD drafting UTILITIES 63Plate array.

CAD software UTILITIES 64Toolbar: CAD drawing UTILITIES 65Plate array (on toolbar  "Utilities").

CAD drafting UTILITIES 66Command line: SPPLTARRAY.

Command to tile layouts for a given circuit.

    1.    Choose from a base  tile pattern and place it on the drawing.

CAD software UTILITIES 67

    2.    Press the CAD drawing UTILITIES 68plate array.

    3.    In the opened window, click the plate shema and specify the token group.

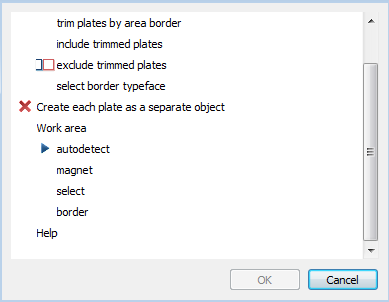

CAD drafting UTILITIES 69

    4.    Select Trim mode extreme tiles .

                  ·     Trim plates by area border - tiles clipped to the boundary of the layout. Circuit tile becomes open. This tile is taken into account in property "Cut". This mode is not available if you enable the check box "Make each tile a separate."

                  ·     Include trimmed plates - extreme tiles stacked atop circuit layout.

                  ·     Exclude trimmed plates - tiles, overlapping circuit layouts do not fit.

                  ·     Sect border type face- if tiles have execution end elements will be selected most podhodyaeschee. When the layout of the area selected by the execution system names: Whole, Left, Right, Top, Bottom. When the layout along the border all versions checked sequentially, regardless of names.

Trim plates by area border

Include trimmed plates

Exclude trimmed plates

Sect border type face

CAD software UTILITIES 70

CAD drawing UTILITIES 71

CAD drafting UTILITIES 72

CAD software UTILITIES 73

    5.    Create each plate as a separate object.

If the box is checked, the result will be a group of independent layout objects - copies of the original objects. This mode does not support cutting elements on the boundaries of the area, but allows more flexibility to edit the result.

When the check box is created off a single object that includes all geometry. In the properties of this object will be information on the number, weight and costs of each type of tiles, as well as the total weight (based on the whole tiles) and cost. You can delete individual tiles by clicking on them with the right. In this case the total amount will be adjusted, weight and cost.

    6.    Determine the work area tiles.

                  ·     auto detect - layout area defined contour, which is located inside the tile pattern. In the inner islands stacked tiles will not.

                  ·     magnet - loop selection tool "magnet".

                  ·     select - area layout is selected in the drawing indicating one or more loops.

                  ·     border - tiles splits along the perimeter or primitives nanoCAD. Cropping mode in this case will simulate laying curbs.

    7.    To complete the command, press OK.

Note:

Creating a template tile layouts can be done using Object Wizard.

Creating an array of objects

CAD drawing UTILITIES 74Main menu: Construction - Utilities - CAD drafting UTILITIES 75Array.

CAD software UTILITIES 76Ribbon: Construction - Utilities - CAD drawing UTILITIES 77Array.

CAD drafting UTILITIES 78Toolbar: CAD software UTILITIES 79Array (on toolbar  "Utilities").

CAD drawing UTILITIES 80Command line: SPARRAY.

Replication called ordered distribution of copies of objects by step and quantity. Duplication of graphics in the nanoCAD Construction 23 is performed using a dialog box arrays.

Four tabs in the Arrays dialog box define four (4) different object replications.

      ·    Arrays along an arbitrary path

      ·    Arrays for arc trajectory

      ·    Rectangular array

      ·    An array of step

For the distribution of objects within a specified area used for an array field .

Arrays along an arbitrary path(Trajectory)

    1.    Tab Path enter the governing parameters.

    2.    Follow The selection object (object selection).

    3.    Specify the base point.

    4.    Select trajectory.

    5.    Follow View .

    6.    Click OK to complete the command.

CAD drafting UTILITIES 81

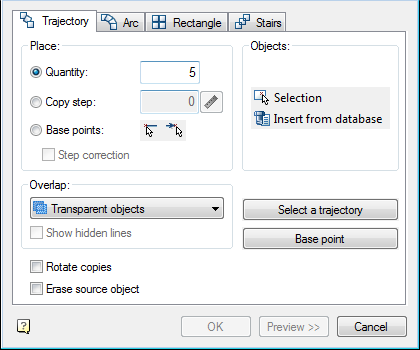

At the top of the window is a group of controls placement, which allows you to select:

      ·    Quantity;

      ·    Copy step;

      ·    Base point;

      ·    Step correction;

In the drop-down list make a choice of Overlap:

      ·    Transparent objects;

      ·    Next under preceding;

      ·    Next Over preceding;

      ·    Interleave.

Button CAD software UTILITIES 82 pick from drawing step allows you to select copies of the objects in the drawing.

Switch Show hidden line controls the display of hidden lines in the drawing. If the switch is on the hidden lines are displayed in the drawing.

Switch Rotate copies controls the orientation of the copied object. If the switch is on when copying objects are rotated so that the vector Y was directed perpendicularly to the path (as shown in the figure).

Button CAD drawing UTILITIES 83 Selection to select the replication object in the drawing.

Button CAD drafting UTILITIES 84 from the base to select the object from the database replication of standard elements.

Button Base point lets you choose the base point of duplicated object (normally it should be expressed in the center or corner of the object).

Button select a trajectory to select a graphic object, along which you will be replicating. As the trajectory can be used lines, polylines, arcs, circles.

CAD software UTILITIES 85

Arrays for arc trajectory

    1.    Tab Arc enter the governing parameters.

    2.    Follow The selection object (object selection).

    3.    Select Center array.

    4.    Follow Preview .

    5.    Click OK to complete the command.

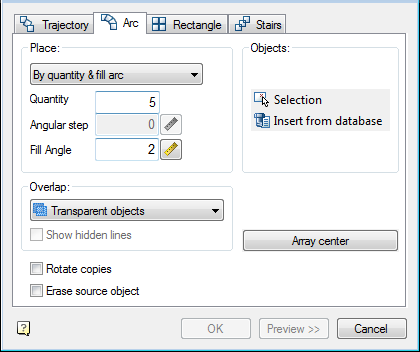

CAD drawing UTILITIES 86

At the top of the window is a control group accommodation, which lets you choose placing of replicated objects:

      ·    By number and step;

      ·    By number and angle;

      ·    By step and corner;

In the input field Number specify the number of replicated objects.

In the entry field Step Angle enter the angle between the replicable elements.

In the input field angle specify the angle required.

Button CAD drafting UTILITIES 87with Mark drawing  step allows you to select the corner or angle with the drawing.

In the drop-down list make a choice of Overlap:

      ·    Transparent objects;

      ·    Next under preceding;

      ·    Next over preceding;

      ·    Interleave.

Switch Show hidden line controls the display of hidden lines in the drawing. If the switch is on the hidden lines are displayed in the drawing.

Button CAD software UTILITIES 88 Selection to select the replication object in the drawing.

Button CAD drawing UTILITIES 89 insert from database used for selecting a center point which the objects will be replicated.

Button array center used for selecting a center point which the objects will be replicated.

Switch Rotate copies controls the orientation of the copied object. If the switch is on the turn when copying objects are shown in the figure.

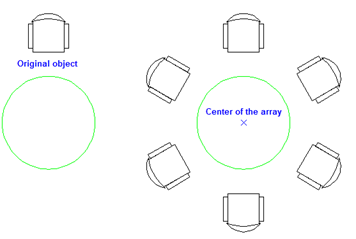

CAD drafting UTILITIES 90

Rectangular array

    1.    Command Rectangle enter key parameters.

    2.    Follow The selection object  (object selection).

    3.    Follow Preview .

    4.    Click OK to complete the command.

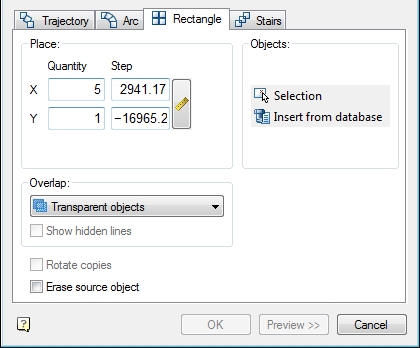

CAD software UTILITIES 91

Enter the number of objects in the array horizontally and vertically, to specify the amount of horizontal and vertical steps between objects.

Steps of an array

    1.    Tab steps enter the governing parameters.

    2.    Follow The selection object (object selection).

    3.    Follow > View .

    4.    Click OK to complete the command.

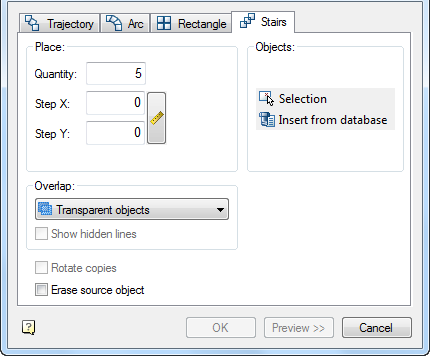

CAD drawing UTILITIES 92

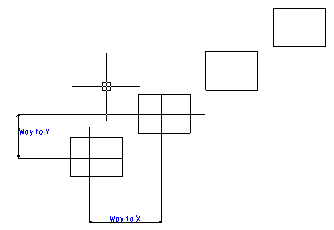

Enter the number of objects in the array, specify the amount of horizontal and vertical step between objects.

CAD drafting UTILITIES 93

Area array

CAD software UTILITIES 94Main menu: Construction - Utilities - CAD drawing UTILITIES 95Area array.

CAD drafting UTILITIES 96Ribbon: Construction - Utilities - CAD software UTILITIES 97Area array.

CAD drawing UTILITIES 98Toolbar: Utilities - CAD drafting UTILITIES 99Area array.

CAD software UTILITIES 100Command line: SPARDARRAY.

The tool is designed to replicate objects within a given area.

Procedure

1. Call the command CAD drawing UTILITIES 101"Area array". A dialogue will open "Area array".

CAD drafting UTILITIES 102

2. Click the "Object(s)" button and select the original objects to copy in the drawing. Press the "Enter" key to complete the selection.

3. Select the method of placing the copied objects using the graphic switch:

CAD software UTILITIES 103 - Rhombus.

CAD drawing UTILITIES 104 - Square.

CAD drafting UTILITIES 105 - Triangle.

4. Specify the spacing (H) between adjacent copies. The CAD software UTILITIES 106"Pick from drawing" button allows you to select a step from the drawing.

5. Specify the minimum indent (?) from the edge of the area. The CAD drawing UTILITIES 107"Pick from drawing" button allows you to select an indent from the drawing.

6. Set the area of the array in one of three ways:

      ·    CAD drafting UTILITIES 108"Select an area by the point". The construction area is formed from a set of closed areas. The command allows you to add closed areas to the set by clicking the LMB inside a closed contour in the drawing. Clicking again inside the contour removes the selected area from the set. To complete the selection, press the "Enter" key.

      ·    CAD software UTILITIES 109"Select contour with the magnet". The contour of the array area is set using the utility "Magnet".

      ·    CAD drawing UTILITIES 110"Paint area". The command allows you to specify an arbitrary placement of copied objects, providing a set step between adjacent copies. This command is available only after selecting the source objects to copy.

The construction of the area is carried out by moving the mouse cursor over the drawing (construction must be started from the location of the original objects). As you move the cursor, markers will appear on the screen to indicate where the copied objects are inserted.

CAD drafting UTILITIES 111

To remove insertion markers, press and hold the "Shift" key. When you hover over a marker, the marker will be deleted.

To temporarily disable the placement of markers, press and hold the "Ctrl" key.

Finish drawing the area by clicking LMB. An array by area will be built.

7. Click the "OK" button. An array by area will be built.

Centerlines

CAD software UTILITIES 112Main menu: Construction - Utilities - CAD drawing UTILITIES 113Centerlines.

CAD drafting UTILITIES 114Ribbon: Construction - Symbols - CAD software UTILITIES 115Centerlines.

CAD drawing UTILITIES 116Toolbar: Utilities - CAD drafting UTILITIES 117Centerlines.

CAD software UTILITIES 118Command line: SPAXIS.

The command is designed to draw centerlines.

Procedure

The construction method depends on the selected objects:

      ·    Parallel lines. The centerline will be drawn in the middle between these segments.

1. Call the command CAD drawing UTILITIES 119"Centerlines".

2. Select the first line.

3. Select the second line.

4. Specify manually the first point of the centerline or press the "Enter" key. When you press the "Enter" key, the centerline is drawn automatically with a protrusion specified in the settings (by default 2mm).

5. Specify manually the second point of the centerline or press the "Enter" key. When you press the "Enter" key, the centerline will stop drawing, the second point will be in the calculated center between the lines.

In the case of manual selection of the start / end point of the centerline, the amount of the protrusion is controlled by the user.

CAD drafting UTILITIES 120

      ·    Non-parallel line segments. The centerline will be drawn along the bisector of the angle between the line segments.

1. Call the command CAD software UTILITIES 121"Centerlines".

2. Select the first line.

3. Select the second line.

4. Select the direction of the centerline. Using the "Rotate" context menu command, you change the direction of the centerline drawing (available only for intersecting line segments).

5. Specify manually the first point of the centerline or press the "Enter" key. When you press the "Enter" key, the centerline is drawn automatically with a protrusion specified in the settings (by default 2mm).

6. Specify manually the second point of the centerline or press the "Enter" key. When you press the "Enter" key, the centerline will stop drawing, the second point will be in the calculated center between the lines.

In the case of manual selection of the start / end point of the centerline, the amount of the protrusion is controlled by the user.

CAD drawing UTILITIES 122

      ·     One circle. Draws centerline centerlines on the selected circle.

1. Call the command  CAD drafting UTILITIES 123"Centerlines".

2. Pick a circle.

3. Press the "Enter" key.

CAD software UTILITIES 124

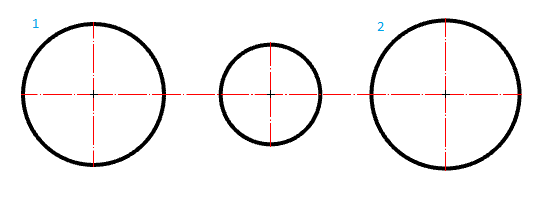

      ·    Two or more circles. Draws centerline centerlines on selected circles with one common centerline.

1. Call the command  CAD drawing UTILITIES 125"Centerlines".

2. Select the first circle.

3. Select the second circle.

4. Press the "Enter" key. If on the line between the centers of the two selected circles there are also centers of other circles, then for such circles, axial ones will also be built.

CAD drafting UTILITIES 126

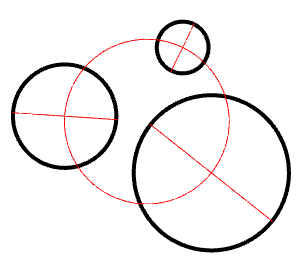

      ·    Three mismatched circles. Creates a circle of centers passing through the centers of the selected circles. Center axes are automatically added to all circles whose centers coincide with the constructed center circle.

1. Call the command  CAD software UTILITIES 127"Centerlines".

2. Select the first circle.

3. Select the second circle.

4. Select the third circle.

CAD drawing UTILITIES 128

Fillet

CAD drafting UTILITIES 129Main menu: Construction - Utilities - CAD software UTILITIES 130Fillet.

CAD drawing UTILITIES 131Ribbon: Construction - Utilities - CAD drafting UTILITIES 132Fillet.

CAD software UTILITIES 133Toolbar: CAD drawing UTILITIES 134Fillet (on toolbar  "Utilities").

CAD drafting UTILITIES 135Command line: SPFILLET.

Command Options

CAD software UTILITIES 136

CAD drawing UTILITIES 137Pick from drawing

CAD drafting UTILITIES 138 Mode full trim contour lines

CAD software UTILITIES 139 Mode partial trim lines to their intersection

CAD drawing UTILITIES 140 Mode without cutting

CAD drafting UTILITIES 141Copying properties

CAD software UTILITIES 142 Measure fillet. Tabulated fillet radius and the number

CAD drawing UTILITIES 143 Extra measurement. Stamped dimensions of the original geometry. Active only when the button "dimensioned pairing"

CAD drafting UTILITIES 144

CAD software UTILITIES 145Insert circle as fillet.

Double click the left mouse button or click the right mouse button in the input fields of values, a context menu will open with a list of the last entry:

CAD drawing UTILITIES 146

When a command from the context menu, the following options::

CAD drafting UTILITIES 147

properties  - Open the dialogue to change the chamfer .

new  - Completion of a group of facets and the beginning of another. This command is used when you need to, for example, several facets of the same size on the same site, and then with the same dimensions - on the other:

Chamfer - Switch to build Circle. After you select the shortcut menu command opens this dialog Pairing parameter setting interface.

polyline - Switching to chamfering along the selected polyline. This option is available if you have selected the type of symmetric Circle: one length or two identical length. In operation, the cut-off modes are ignored and dimensioning.

Features of the Command

Command works in 3D. To execute the command source primitives must lie in one plane

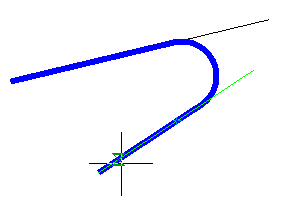

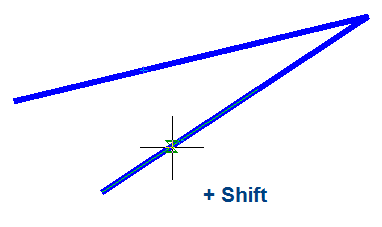

If you select the second object, press and hold SHIFT, then the angle will be formed (at the intersection of the closure and isolation).

CAD software UTILITIES 148CAD drawing UTILITIES 149

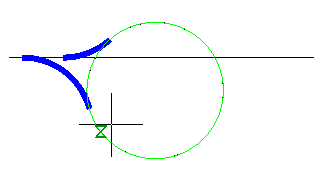

For a pair of ARC-ARC additionally available pairing, combining internal and external touch.

CAD drafting UTILITIES 150CAD software UTILITIES 151

For a pair of ARC-ARC additionally available pairing, combining internal and external touch.

CAD drawing UTILITIES 152

Availability of different types of interfaces depends on the fillet radius. To the outside and combining the radii need greater magnitude than the inner.

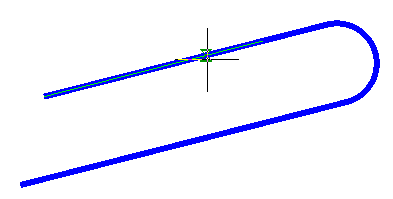

When two parallel lines will be constructed pairing radius equal to half the distance between them (regardless of the specified length). Automatically aligns the sides to the longest segment. When two parallel lines will be constructed pairing radius equal to half the distance between them (regardless of the specified length). Automatically aligns the sides to the longest segment.

CAD drafting UTILITIES 153

Pairing works parallel segments and regions of the same polyline.

CAD software UTILITIES 154

Side interface depends on the position of the mouse cursor when the second object

When you insert a polyline retains its integrity.

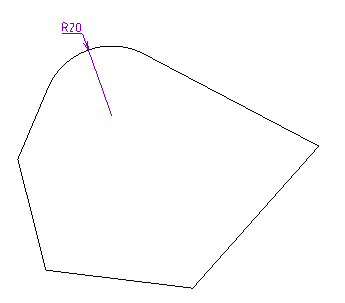

If the team is formed of two polylines one, it will be object of a single polyline.

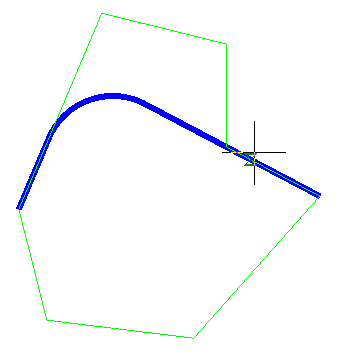

If you select one polyline segments separated by other sites, all the intermediate portions are removed.

CAD drawing UTILITIES 155CAD drafting UTILITIES 156

Chamfer

CAD software UTILITIES 157Main menu: Construction - Utilities - CAD drawing UTILITIES 158Chamfer.

CAD drafting UTILITIES 159Ribbon: Construction - Utilities - CAD software UTILITIES 160Chamfer.

CAD drawing UTILITIES 161Toolbar: CAD drafting UTILITIES 162Chamfer (on toolbar  "Utilities").

CAD software UTILITIES 163Command line: SPCHAMFER.

Command Options

This command is used for automatic and semi-automatic placement of face on the details with the various versions and with the possibility of automatic dimensioning.

After clicking the command, it opens a dialog box settings Circle:

CAD drawing UTILITIES 164

CAD drafting UTILITIES 165Mode chamfering parts with two different sizes

CAD software UTILITIES 166CAD drawing UTILITIES 167

CAD drafting UTILITIES 168Mode chamfering parts with two different sizes

CAD software UTILITIES 169CAD drawing UTILITIES 170

CAD drafting UTILITIES 171Mode Chamfer length and angle in this mode instead of the length 2 displays the setting angle.

CAD software UTILITIES 172CAD drawing UTILITIES 173

CAD drafting UTILITIES 174 Mode full cutting contour lines

CAD software UTILITIES 175 Mode partial cutting lines to their intersection

CAD drawing UTILITIES 176 Mode without cutting

CAD drafting UTILITIES 177 Measure Chamfer

CAD software UTILITIES 178 Copy properties surrounding face

CAD drawing UTILITIES 179 Pick from drawing

Double click the left mouse button or click the right mouse button in the input fields of values, context menu will open with a list of the last entry:

CAD drafting UTILITIES 180

When a command from the context menu, the following options:

CAD software UTILITIES 181

Propertise - Opening the dialogue to change the chamfer chamfer.

New  - Completion of a group of facets and the beginning of another. This command is used when you need to, for example, several facets of the same size on the same site, and then with the same dimensions - on the other:

Fillet -  Switch to build pairings. After you select the shortcut menu command opens this dialog Pairing parameter setting interface.

Polyline - Switching to chamfering along the selected polyline. This option is available if you have selected the type of symmetric Circle: one length or two identical length. In operation, the cut-off modes are ignored and dimensioning.

Features of the command

The command works in 3D. To execute the command source primitives must lie in one plane.

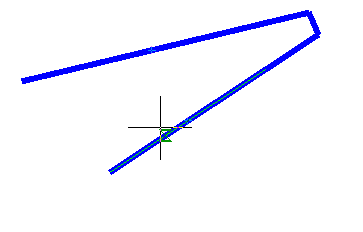

If you select the second object, press and hold SHIFT, then the angle will be formed (at the intersection of the closure and isolation).

CAD drawing UTILITIES 182CAD drafting UTILITIES 183

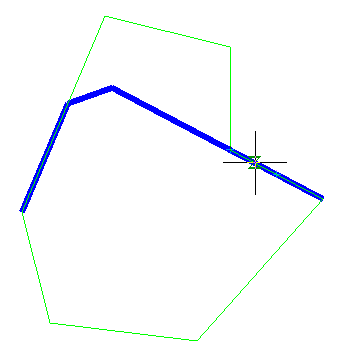

When you insert a polyline retains its integrity.

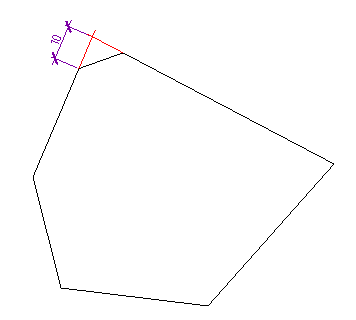

If the team is formed of two polylines one, it will be object to a single polyline.

If you select one polyline segments separated by other sites, all the intermediate portions are removed.

CAD software UTILITIES 184CAD drawing UTILITIES 185

Anchor

CAD drafting UTILITIES 186Main menu: Construction - Utilities - CAD software UTILITIES 187Anchor.

CAD drawing UTILITIES 188Ribbon: Construction - Symbols - CAD drafting UTILITIES 189Anchor.

CAD software UTILITIES 190Toolbar: Utilities - CAD drawing UTILITIES 191Anchor.

CAD drafting UTILITIES 192Command line: SPANCHOR.

The command is intended for drawing end markers on line segments.

Procedure

1. Call the command CAD software UTILITIES 193"Anchor". A dialogue will open  "End markers of lines".

CAD drawing UTILITIES 194

2. In the "End markers of lines" dialog select the type of end markers and set their parameters. Click the "OK" button.

3. Specify the necessary lines or polylines in the drawing. "End markers" objects are created from from. Press the "Esc" key to end the circular mode for specifying objects.

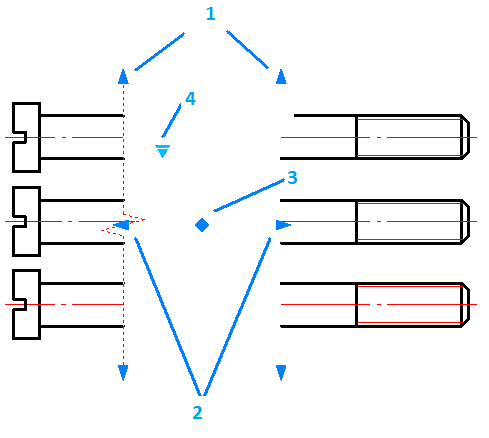

CAD drafting UTILITIES 195

Dialog

CAD software UTILITIES 196

The "End markers of lines" editing dialog contains:

The panel of tabs for selecting marker types.

The "Reinforcing markers" tab allows you to define reinforcement markers.

CAD drawing UTILITIES 197

To change, select a marker for the first or second end of the segment by clicking on the graphics field (the button with the reinforcement marker image) and selecting one of the following options:

CAD drafting UTILITIES 198

The "Arrows" tab allows you to define arrows.

CAD software UTILITIES 199

To change, select the arrow for the first or second end of the line segment by clicking on the graphic field (the button with the arrow) and choosing one of the following options:

CAD drawing UTILITIES 200

"Size of marker" group

Input fields "A1", "A2", "B1", "B2" - allow you to specify the corresponding sizes of markers in the current scale nanoCAD Construction  23. The fields used are indicated on the image of the markers.

Group "Line weight of marker"

Drop-down list "Line weight" - allows you to select the line weight of markers.

Additional commands

The CAD drafting UTILITIES 201"Copy Properties" button - allows you to copy the appearance of end markers and their dimensions from a line with reinforcement or arrow markers in the drawing.

Hole group

CAD software UTILITIES 202Main menu: Construction - Utilities - CAD drawing UTILITIES 203Hole group.

CAD drafting UTILITIES 204Ribbon: Construction - Symbols - CAD software UTILITIES 205Hole group.

CAD drawing UTILITIES 206Toolbar:  "Utilities") - CAD drafting UTILITIES 207Hole group.

CAD software UTILITIES 208Command line: SPFILL.

Universal command for drawing holes. With its help, you can draw a new hole with centerlines, or by specifying a group of holes to assign them general properties with filling of a sector.

Procedure

1. Draw holes from circles.

CAD drawing UTILITIES 209

2. Call the command CAD drafting UTILITIES 210"Hole group".

CAD software UTILITIES 211

3. Select the required circles. Press the "Enter" key to complete the selection. The "Holes" dialog will open.

CAD drawing UTILITIES 212

4. Adjust the hole settings and click "OK". The parameters will be applied to the holes. The holes will be created.

CAD drafting UTILITIES 213

Dialog

The "Holes" editing dialog is opened by double-clicking. The dialog consists of: Toolbar, Parameter List, Graphics Window.

CAD software UTILITIES 214

Toolbar

CAD drawing UTILITIES 215Match properties - this command allows you to copy parameters from holes already installed in the drawing.

CAD drafting UTILITIES 216Select holes - the command allows you to select additional holes from the drawing.

CAD software UTILITIES 217Create holes - the command creates holes of the specified diameter. To dynamically set the radius on the screen, hold down the left mouse button and move the cursor.

Parameter List

Designation

      ·    Number - specifies the number of the hole in the group.

      ·    Description - specifies the hole table description field.

      ·    Standard - sets the field to the standard of the hole table.

      ·    Roughness - allows you to specify the roughness of the hole (displayed in the hole table).

Dimensions

      ·    Diameter - hole diameter.

      ·    Tolerance - the "..." button opens the "Tolerances" dialog, from which you can select a tolerance.

      ·    Thread pitch - hole thread pitch.

Representation

      ·    Hole - hole display switch.

      ·    Label - label display switch.

      ·    Axes - axis display switch.

      ·    Threaded hole - thread display switch.

      ·    Diam. dimension - diametrical dimension display switch.

      ·    Center identifier - drop-down list for selecting the hole center designation.

Note:

Also, the parameters of the "Representation" section can be configured through the graphics window.

Graphics Window

The graphics window allows you to see the resulting hole representation and customize the representation by directly specifying elements.

Threaded hole

Axes

Fill first quarter

CAD drawing UTILITIES 218

CAD drafting UTILITIES 219

CAD software UTILITIES 220

Fill second quarter

Fill third quarter

Fill fourth quarter

CAD drawing UTILITIES 221

CAD drafting UTILITIES 222

CAD software UTILITIES 223

Properties

The parameters on the "Properties" functional panel are similar to the parameters from the list of parameters of the "Holes" dialog.

Grips

1. Hole position change grip.

2. Diameter change grips.

3. Grip for changing the position of the hole number.

4. Hole rotation grip.

5. View adjustment grip.



CAD drawing UTILITIES 224

Static beam calculation

CAD drafting UTILITIES 225Main menu: Construction - Utilits - CAD software UTILITIES 226Static beam calculation.

CAD drawing UTILITIES 227Toolbar: CAD drafting UTILITIES 228Calculation beams (toolbar  "Utilits").

CAD software UTILITIES 229Command line: SPBEAM.

CAD drawing UTILITIES 230Library: Calculations - Loads - Beam.

CAD drafting UTILITIES 231Library: Calculations - Loads - Calculations - Beam calculation (applied to the finished beam affixed to the supports, loads and moments, see. Calculation).

This command is used to calculate the strength of the direct beam of constant cross-section.

After selecting the command a dialog box opens beam calculation.

    1.    On the left side of the dialog box, select the cross-section of the beam.

    2.    Right set sectional dimensions and length L beams. For visual selection of the beam length, click CAD software UTILITIES 232Dynamic input at the bottom of the dialog box.

    3.    Enter the physical characteristics of the material and the cut rotation.

    4.    Specify moment and the loads acting on the beam.

Setting section

There are three ways to specify the section:



CAD drawing UTILITIES 233

Standard geometric cross section (e.g., triangle).

CAD drafting UTILITIES 234

Rolled metal base elements of nanoCAD Construction  23 (e.g, I-beam GOST 8239-89). To use the base when calculating the beams need to set a Class 725.

CAD software UTILITIES 235

Arbitrary section defined by the user.

Sizing is carried out in several ways:

     ·     Click inside the closed area. Automatically determined by the outer contour of the closed area and the region is added to the set.

     ·     Clicking on a closed polyline or circle. Added to the area bounded by a circle or polyline

     ·     Reselection area removes it from the set for the calculation of the cross section.

After selection of the drawing section in the dialog box Beam calculation appears custom cross-section:

CAD drawing UTILITIES 236

Change the name of the custom section by selecting it and clicking the left mouse button on the title.

Delete a custom section of the list is made by pressing delete.

For the standard section of the database items, choose Type size from the dropdown list.

CAD drafting UTILITIES 237

Beam Load and moments

    1.    In the dialog box, double-click the desired type of load or moment.

CAD software UTILITIES 238

    2.    Select insertion point or the load bearing on the beam. At the time of selecting the insertion point move the cursor to the beam to install dependencies.

CAD drawing UTILITIES 239

    3.    Set the parameters or load bearing in the dialog box.

                  ·     Support

Point - the distance from the starting point to the point of insertion beam bearing in millimeters. Use keys to select the type of support.

                  ·     Concentrated load

Position - the distance from the starting point to the point of insertion beam load, mm.

Value - the value component of the load in the selected direction, H.

Point - the distance from the insertion point to the point of load application of the load in the selected direction, mm.

Diagram on the left side of the dialog box explains the meaning of the input parameter.

Tabs on the top of the window are used to select the coordinate system in which the values are set:

  CAD drafting UTILITIES 240 Rectangular

  CAD software UTILITIES 241 Spherical

  CAD drawing UTILITIES 242 Cylindrical

                  ·     Distributed load

Position - the distance from the starting point to the point of insertion beam load, mm.

Length - length of the section, which is attached to a distributed force, KN/mm.

In input fields, set the value component of the load in the selected direction, H.

Diagram on the left side of the dialog box explains the meaning of the input parameter.

Tabs on the top of the window are used to select the coordinate system in which the values are set:

  CAD drafting UTILITIES 243 Rectangular

  CAD software UTILITIES 244 Spherical

  CAD drawing UTILITIES 245 Cylindrical

                  ·     Moments

Diagram on the left side of the dialog box explains the meaning of the parameters.

X, Y, Z - the components of the bending moment , KN*m.

C - distance from the starting point to the point of insertion beams torque , mm.

Calculation

Click CAD drafting UTILITIES 246Calculate beam at the bottom of the dialog box to perform the calculation.

CAD software UTILITIES 247

Table of results of calculating comprises calculating the maximum deflection and stress values as well as the distance from the starting point of the beam to a point at which the maximum of each parameter.

To insert a drawing graphs strain and effort to select the desired type of graph for each feature:

CAD drawing UTILITIES 248    CAD drafting UTILITIES 249

Button CAD software UTILITIES 250Apply adds graphics drawing.

CAD drawing UTILITIES 251

Button CAD drafting UTILITIES 252 Save Report. Stores the results of the calculation of the beam to an external file.

Button CAD software UTILITIES 253 Calculate value. Opens Meaning, in which parameters are calculated at an arbitrary point of the beam.

CAD drawing UTILITIES 254

Button CAD drafting UTILITIES 255Export diagrams. Sell calculation results in a table in Construction Site 23. After selecting the command, specify the insertion point on the drawing table.

Calculate section characteristics

CAD software UTILITIES 256Main menu: Construction - Utilits - CAD drawing UTILITIES 257Calculate section characteristics.

CAD drafting UTILITIES 258Toolbar: CAD software UTILITIES 259Calculate section characteristics (toolbar  "Utilits").

CAD drawing UTILITIES 260Command line: SPGCS.

This command is used to calculate the geometric characteristics of the complex cross-sections with respect to arbitrary axes.

Calculation procedure

    1.    Call command.

    2.    In the drawing, then click the area closed by one of the ways:

                   ·     Clicking inside a closed area. Automatically determined by the outer loop of the closed area, and the area is added to the set.

                   ·     Clicking on a closed polyline or circle. Adds the area bounded by polyline or circle.

CAD drafting UTILITIES 261CAD software UTILITIES 262

Note:

Repeated selection of the field deletes it from the set to calculate the cross-section.

    3.    Complete the selection by clicking the right mouse button or the Enter key.

    4.    Specify the origin point or [central axis]. If you select the "central axis", the point of origin is automatically set in the center of mass of the cross section with an angle of rotation equal to 0 (step 5 is skipped).

CAD drawing UTILITIES 263

    5.    Specify the angle of rotation of the coordinate system.

CAD drafting UTILITIES 264

    6.    In the dialog box "Geometric section properties" Adjust the characteristics included in the summary table of the results.

CAD software UTILITIES 265

For each characteristic, you can customize your format (except weight), and the accuracy of the unit.

CAD drawing UTILITIES 266

To calculate the weight you need to open an additional menu "Mass calculation on section", which indicate the product density and length. When you specify the length of the need to expose the units. When you specify the density, you can use the base materials, by clicking on the button  CAD drafting UTILITIES 267"Material selection".

Customized settings display characteristics (size, precision, units) stored for later calculations sectional characteristics. To return to the default settings, press the button  CAD software UTILITIES 268"Load default settings".

    7.    Click "OK" in the dialog box and enter the drawing an insertion point of the table with the calculated parameters.

CAD drawing UTILITIES 269

After the calculation is added to the drawing object nanoCAD Construction  23, comprising a cross-section schematic outline and the main central axis. The lengths of the axes are proportional to the values of the corresponding axial moments of inertia.

Calculator

The calculator is designed for complex mathematical calculations. The capabilities of the table and text editor are significantly expanded using the powerful functionality of the calculator.

The calculator is available in the table editor, text editor, when using the "Inquiry" utility in the "Value picker" dialog.

The "Calculator" dialog consists of a main menu and a set of grouped commands.

CAD drafting UTILITIES 270

Main menu

      ·    Edit

                  ·     Copy Ctrl+C - the command copies data from the input field.

                  ·     Paste Ctrl+V - the command pastes the copied data into the input field.

      ·    View

                  ·     NoteBook - command opens the notebook panel.

                  ·     Degrees - the command switches the mode of calculating angles in degrees.

                  ·     Radians - the command switches the mode of calculating angles in radians.

                  ·     Expression - the command turns on the formula calculation mode. The input field is divided into two: on the left is the formula, on the right is the result.

CAD software UTILITIES 271

Commands

Drop-down list "Precision" - sets the rounding digit of the calculation result.

CAD drawing UTILITIES 272

Switch "Degrees - Radians" - switches the angle calculation mode.

CAD drafting UTILITIES 273

Group of buttons "Mathematical operations".

CAD software UTILITIES 274

The main group of calculator buttons. The composition of the buttons is similar to all standard calculators.

CAD drawing UTILITIES 275

Buttons for navigating table cells. Available when editing a table cell. It also shows the name of the currently edited cell.

CAD drafting UTILITIES 276

Button CAD software UTILITIES 277 to open the "Notebook" sidebar. It is possible to connect the spreadsheet editor of the "Notebook" tool. The additional sidebar lists tables from the notebook in a drop-down list. After selecting a table, its composition will be displayed. Double-clicking on a value from the table adds this value to the input field. This tool is useful when you need to perform routine calculation activities frequently.

CAD drawing UTILITIES 278

The "Insert" button is designed to insert the result of calculations from the calculator into an editable cell, a text entry field or the "Value picker" dialog.

The "Close" button closes the calculator dialog without transferring the value.

Insert material designation to the table

Button CAD drafting UTILITIES 279material designation.

This tool is designed to be inserted into the table, the technical requirements and specifications of the formatted string records on material and product mix. By pressing the button, a dialog box appears called material designation.

CAD software UTILITIES 280

Notebook

Button CAD drawing UTILITIES 281 Notebook

To enter recurring standard text expressions (abbreviations, symbols, etc.) used tool Notebook. This is a versatile tool for some editing tools nanoCAD Construction 23, which is necessary to enter text. Notebook combines the functions of: storing a set of expressions and the structure of their placement in a separate file, input and placement of text expressions, input and placement of small tables, searching and editing tools introduced earlier records.

CAD drafting UTILITIES 282

Dialog Notebook divided into two parts. On the left side there is a tree structure of the notebook where the user selects the sections and pages notebook. In the upper part of the window control buttons notebook.

CAD software UTILITIES 283

CAD drawing UTILITIES 284Load from file. Opens the notebook file stored on disk.

CAD drafting UTILITIES 285Save. Saves the changes to the file in your notebook.

Important!

Recommended that you save a new notebook in a separate file in the first call to the tool Notebook using the button Save.

To search for a text string in a notebook has a special search tool, Right-click on any section or page of the section and in the context menu, call the command Find. Found links are placed in the section CAD software UTILITIES 286results

To accelerate the search procedure provided for viewing the latest expressions used in section CAD drawing UTILITIES 287history.

Management structure for the notebook with the buttons:

CAD drafting UTILITIES 288Add a partition

CAD software UTILITIES 289Add this page

CAD drawing UTILITIES 290Add a table

CAD drafting UTILITIES 291Delete tree item

In the notebook is allowed to create an unlimited number of sections and subsections, pages, and tables.

CAD software UTILITIES 292

Moving sections, pages, and tables for structural wood can produce a drag and drop (drag and drop).

Rename the selected section or page using the command Rename the shortcut menu.

CAD drawing UTILITIES 293Select / Copy the selected text. Transmits the selected piece of text pages into editable table cell. If the tree structure of the selected page or table in your notebook, the contents displayed on the right side of the dialog. Highlight the desired entry cursor, and turn the Select / Copy the selected text.

CAD drafting UTILITIES 294Edit Page. This button is used to activate the edit pages and style notebook. It becomes active only if the tree structure is selected page element or table. In edit mode, the tree structure becomes inactive, and the right side activates the Edit toolbar.



CAD software UTILITIES 295Editing tools page



CAD drawing UTILITIES 296Clear. Clears the current page

CAD drafting UTILITIES 297Load from file. Allows you to import an existing text file *.RTF MS Word.

CAD software UTILITIES 298Save the file. Allows you to record the content into a file *.RTF for use in MS Word.

CAD drawing UTILITIES 299Add item.

CAD drafting UTILITIES 300Remove the item .

CAD software UTILITIES 301Move up.

CAD drawing UTILITIES 302Move down.

CAD drafting UTILITIES 303Superscript. Includes character mode superscript.

CAD software UTILITIES 304Subscript. Includes character mode subscript.

CAD drawing UTILITIES 305Insert fraction. dialog box set the numerator and denominator.

     Switch controls the display of the slash.

     CAD drafting UTILITIES 306

CAD software UTILITIES 307Insert tolerance. Opens Tolerances.

CAD drawing UTILITIES 308Insert material. Opens material.

CAD drafting UTILITIES 309Calculator.



CAD software UTILITIES 310Tools for editing table



CAD drawing UTILITIES 311Insert Row.

CAD drafting UTILITIES 312Delete Row.

CAD software UTILITIES 313Insert Column.

CAD drawing UTILITIES 314Delete Column.

CAD drafting UTILITIES 315Rename column. Opens Properties column in which you specify the width and title of the selected column.

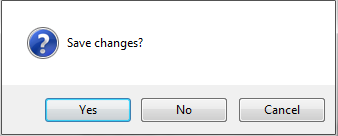

After editing, when you exit the notebook dialog appears - prompted to save the changes in a notebook.

CAD software UTILITIES 316

Magnet

Magnet used to draw complex paths based on existing graphics. The contour can be constructed by points or by sequential indication of adjacent segments or arcs.

Called by:

      ·    from the context menu (Weld seam, Simplified weld joint, Bound forms)

      ·    button CAD drawing UTILITIES 317"Select contour with the magnet" in the dialog (Area array).

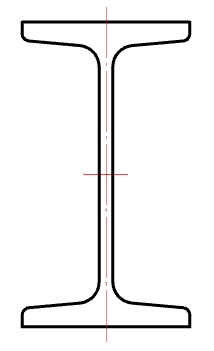

An example of constructing a weld seam contour, based on an I-beam image inserted into the drawing

CAD drafting UTILITIES 318

1. We call the command  CAD software UTILITIES 319"Weld seam". A dialogue will open "Weld seam".

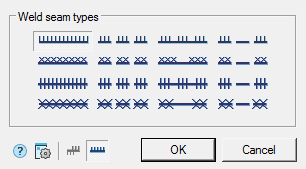

2. Select the type of seam and click "OK".

CAD drawing UTILITIES 320

3. In the context menu, select the command "Magnet".

CAD drafting UTILITIES 321

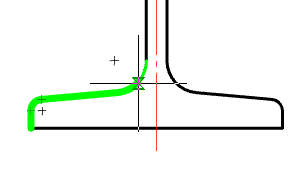

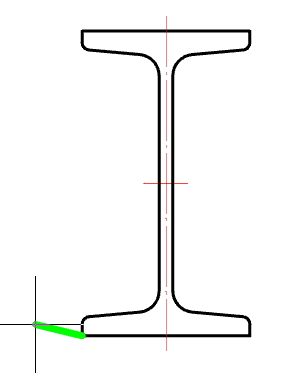

4. We indicate the starting point of the contour.

CAD software UTILITIES 322

5. Sequentially move the cursor over the end points of the linear and arc sections of the I-beam contour.

CAD drawing UTILITIES 323

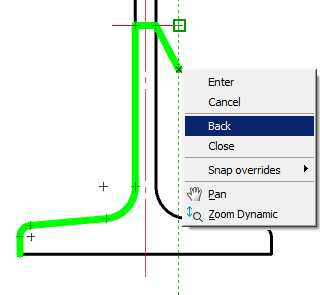

Deselection of the previous segment is made by re-pointing the cursor to the starting point of this segment or by the "Back" command from the context menu.

 CAD drafting UTILITIES 324

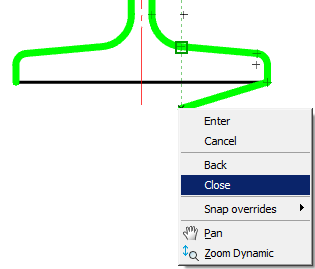

6. Use the "Close" command from the context menu to complete the construction of the closed contour.

CAD software UTILITIES 325

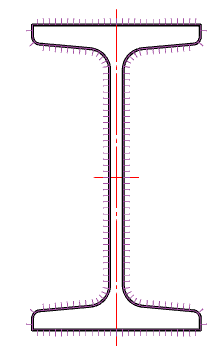

7. The weld will be built along the specified contour.

CAD drawing UTILITIES 326

Add selected

CAD drafting UTILITIES 327Command line: SPADDCOPY.

The command allows you to create a new object nanoCAD Construction  based on the type and general properties of the selected object nanoCAD Construction .

Procedure

1. Call the command "Add selected" - ADDCOPY.

2. Press the "Space" key (the <Multiple> option will turn on) if you want to insert the object in a cyclic mode.

3. Select an object to serve as a template. The paste command for the selected object type will run. The properties of the new object will match the template object.



We collect Cookies
We use cookies to ensure that we give you the best experience on our website. By clicking “Accept”, you agree to our website’s cookie use as described in our Privacy Statement.
