Quick Text Mode

CAD drafting Quick Text Mode 0        Ribbon: Annotate – Text > CAD software Quick Text Mode 1 Contour text

CAD drawing Quick Text Mode 2        Menu: View – Display > CAD drafting Quick Text Mode 3 Quick text

CAD software Quick Text Mode 4 Command line: QTEXT

The Quick Text mode hides the contents of text objects on the screen and print. Only bound rectangles instead of text objects or attributes are displayed on screen and print. Redrawing and regeneration of drawings containing a large number of text objects is faster when the Quick Text mode is on.

CAD drawing Quick Text Mode 5

CAD drafting Quick Text Mode 6

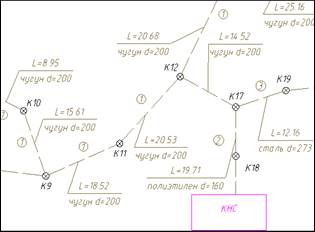

Qtext mode is disabled

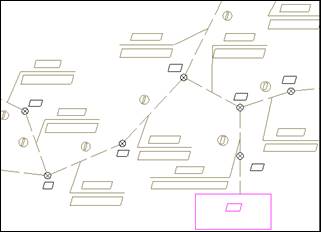

Qtext mode is enabled



CAD software Quick Text Mode 7

Note

The Qtext mode replaces all texts of the drawing by bounding boxes. At the same time, there is a possibility to replace with boundaries only the text, the size of which on the screen does not exceed a specified number of pixels in the System settings option – Rendering optimization – Simplify text less than <…> pixels in the OPTIONS dialog box.
