Point

Construction and Reference Geometry

       Ribbon: Home, Draw – Draw >  Point

      Menu: Draw – Point >  Single Point

      Toolbar: Draw –

 Hotkeys: CTRL+ALT+N

 Command line: PO, POINT

The command allows the creation of point objects which can be shown as a common point or a special symbol. Points are used, for example, for measure (the Divide and Measure commands) and as reference points for object snap. A point is shown as a special symbol because a point object of the default style is hard to see on the screen. A size of Point objects can be specified according to the screen or in absolute units.

The Point Styles dialog box (Format menu) allows changing of the size of a point object and its style.

note: Changing the size and/or style of point objects affect not only new objects, but also created objects.

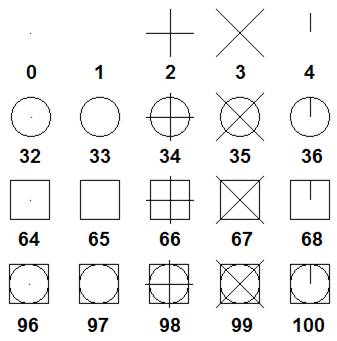

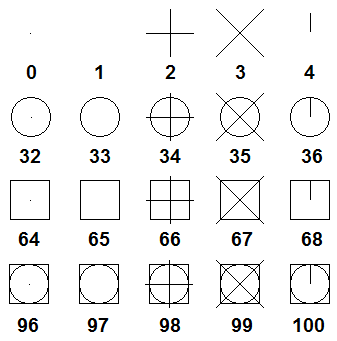

The system variable - PDMODE controls shape and display of Point object on the screen. Special symbols and their values to display point in the screen:

When a value of PDMODE=1 point is invisible on the screen.

System variable PDSIZE controls a size of special symbols (for values of PDMODE, different from 0 and 1).

·         PDSIZE=0 by default specifies the size of symbols, which equals 5% of graphic area height.

·         PDSIZE>0 specify absolute value of point display.

·         PDSIZE<0 specify point size in percentage of graphic area height.

Command prompts:
