nanoCAD Platform Help

Dimension styles

CAD drafting Dimension styles 0    Ribbon: Home - Annotation > CAD software Dimension styles 1 Dimension Style Manager

CAD drawing Dimension styles 2    Ribbon: Annotate - Dimensions > CAD drafting Dimension styles 3 Dimension Style Manager

CAD software Dimension styles 4    Menu: FormatCAD drawing Dimension styles 5 Dimensions styles …

CAD drafting Dimension styles 6    Menu: DimensionsCAD software Dimension styles 7 Dimensions styles …

CAD drawing Dimension styles 8    Toolbar: Styles – CAD drafting Dimension styles 9

CAD software Dimension styles 10 Command line: DIMSTYLE, DIMSTYLESCMD

A dimension style is a named collection of dimension settings that control the appearance of dimensions, such as arrowhead style, text location and lateral tolerances.

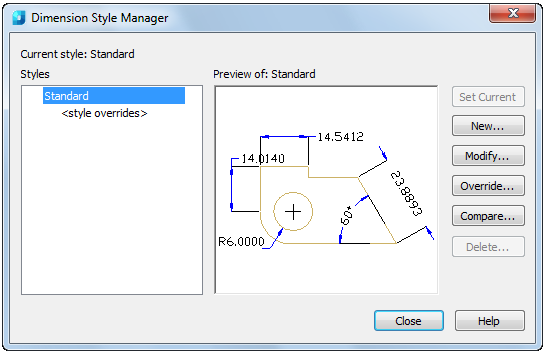

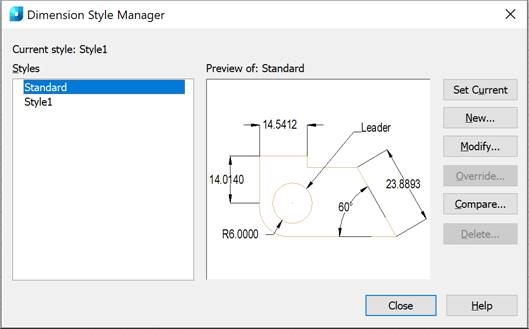

Controlling of the dimension styles is carried out in the Dimension Style Manager dialog box:

CAD drawing Dimension styles 11

Options:

Current style:

Displays the name of the current dimension style.

Styles:

Displays a list of the dimension styles in the drawing.

Preview of:

Shows a graphic representation of the style selected in the Styles list.

CAD drafting Dimension styles 12

Sets the style selected under Styles as the current one.

CAD software Dimension styles 13

Displays the Creating style dialog box where you can define a new dimension style.

CAD drawing Dimension styles 14

Changes the options for the style selected in the list.

CAD drafting Dimension styles 15

Changes the options for the current dimension style.

CAD software Dimension styles 16

Compares the properties of two dimension styles.

CAD drawing Dimension styles 17

Deletes the selected dimension style.

To set the current dimension style:



1.    Select the required style from the Styles list.

2.    Click the Set Current button.

To create a new dimension style:



1.    In the Styles list, select the style from which you want to create a new one.

2.    Click the New button.

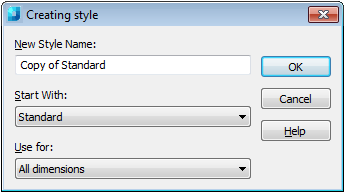

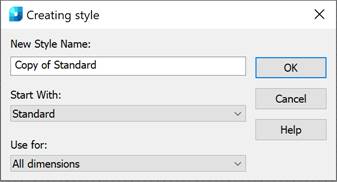

3.    In the Creating style dialog box, type a name for the new style:

CAD drafting Dimension styles 18

Options:

New style name:

Specifies the new dimension style name.

Start with:

Sets the style to use as a basis for the new one.

Use for:

Creates a dimension sub style that applies only to specific dimension types.

The following sub styles are available:

·         All dimensions

·         Linear dimensions

·         Angular dimensions

·         Diameter dimensions

·         Radial dimensions

·         Ordinate dimensions

·         Leader dimensions

4.    Click OK.

5.    In the Modify dimension style dialog box that appears, set the required options for the new dimension style.

To modify a dimension style:



1.    In the Styles list, select the required style.

2.    Click the Modify button.

3.    In the Modify dimension style dialog box that appears, set the new options for the dimension style to be modified.

To change the options for the current dimension style:



1.    In the Styles list, select the current dimension style (if you select any other style, the Override buttonwill not be available).

2.    Click the Override button.

3.    In the Modify dimension style dialog box that appears, override the options for the current dimension style.

To compare two dimension styles:



1.    In the Styles list, select the first dimension style which you want to compare.

2.    Click the Compare button.

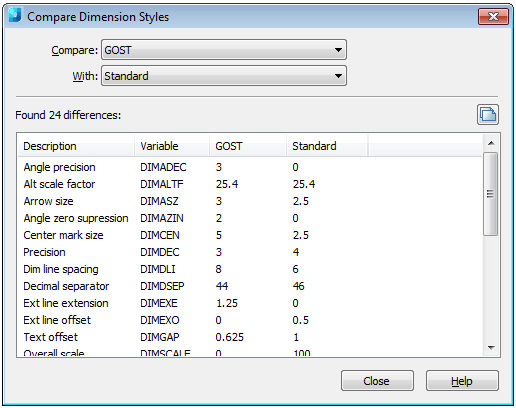

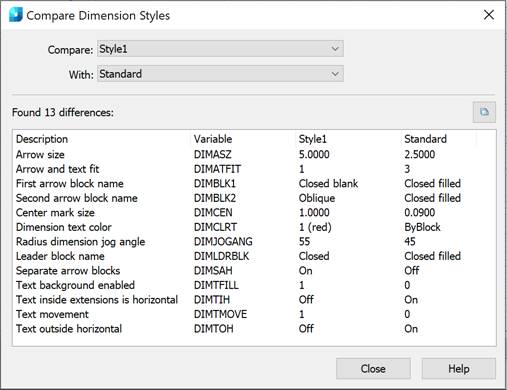

3.    In the Compare Dimension Styles dialog box, from the With list select the second dimension style for comparing:

CAD software Dimension styles 19

Options:

Compare:

Drop-down list to select the first dimension style for comparing.

With:

Drop-down list to select the second dimension style for comparing.

Found differences:

Description:

List of the properties of the compared dimension styles.

Variable:

List of the dimension variables that define the compared properties.

CAD drawing Dimension styles 20

Use this button to copy the comparison results to the clipboard.

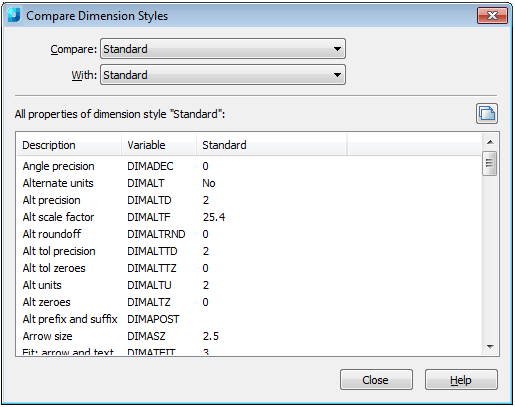

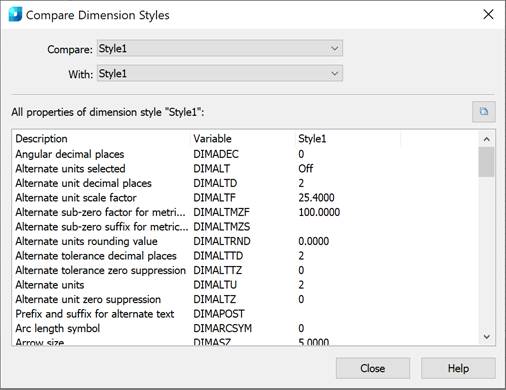

The Compare Dimension Styles dialog box can be used to view a list of all the properties of any dimension style. To do this, select the same dimension style in the Compare and With lists:

CAD drafting Dimension styles 21

To delete a dimension style:



1.    In the Styles list, select the style that you want to delete.

2.    Click the Delete button.
