3D Array

3D Arrays

CAD drafting 3D Array 0    Ribbon: Draw - Modify > CAD software 3D Array 1 3D Array

CAD drawing 3D Array 2    Menu: Modify – CAD drafting 3D Array 3 3D Array

CAD software 3D Array 4 Command line: 3DARRAY

Creates copies of selected objects arranged in a rectangular or polar array.

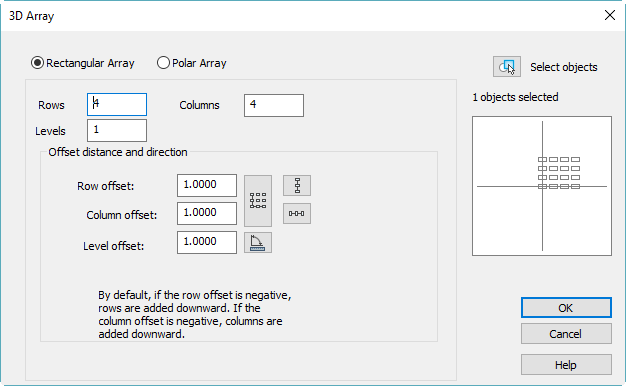

Rectangular 3D Array

CAD drawing 3D Array 5

Options:

Rectangular Array

Selects the Rectangular Array mode.

Rows:

Specifies the number of rows.

Columns:

Specifies the number of columns.

Levels:

Specifies the number of levels.

Offset distance and directions

Row offset:

Specifies offset distance for rows.

Column offset:

Specifies offset distance for columns.

Level offset:

Specifies offset distance for levels.

Measure buttons:

Measures distance on screen.

CAD drafting 3D Array 6

Specifies rows offset.

CAD software 3D Array 7

Specifies columns offset.

CAD drawing 3D Array 8

Specifies both offsets.

CAD drafting 3D Array 9

Specifies rotation angle.

Polar 3D Array

CAD software 3D Array 10

The More button shows additional options for Offset distance and direction:

CAD drawing 3D Array 11

Options:

Polar Array

Selects the Polar Array mode.

Center point : X: Y: Z

Array center point X, Y and Z coordinates.

Axis point: X: Y: Z

Second axis point X, Y and Z coordinates.

CAD drafting 3D Array 12

Selects point on screen.

Method and values

Method:

Selects the method to create Polar array:

·         Total number of items and Angle to Fill

·         Total number of items and Angle between items

·         Angle to fill and Angle between items

Total number of items:

Specifies the number of arrayed items, including the original.

Angle to fill:

Specifies the angle between the first and last item in the array. A negative number produces a clockwise array rotation.

CAD software 3D Array 13

Specifies the angle on screen.

Angle between items:

Specifies the angle between items in the array.

CAD drawing 3D Array 14

Specifies the angle on screen.

Rotate items as copied

Controls whether items are rotated as they are arrayed.

More/Less

Shows/hides additional options.
