nanoCAD User Interface

nanoCAD User Interface

With nanoCAD you can organize user workspace according to the user’s needs and tasks. The standard set of tools is usually used:

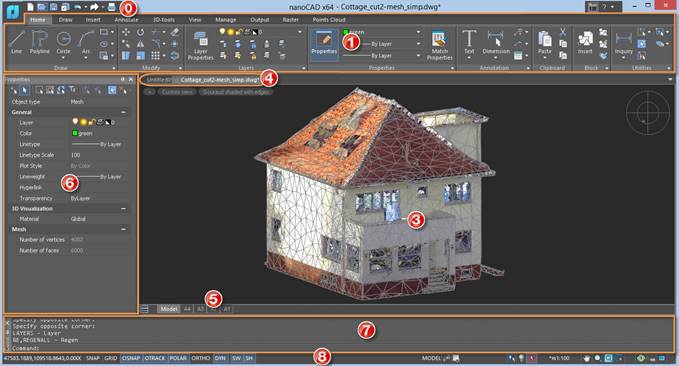

Ribbon interface:

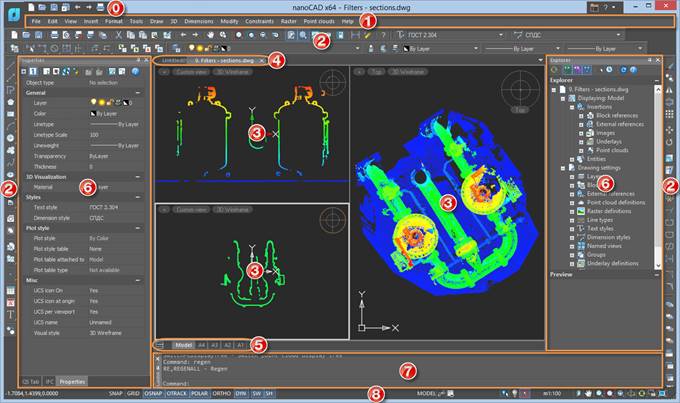

Classic interface (with main menu and toolbars instead of ribbon):

The nanoCAD workspace consists of the following interface elements:

·         the nanoCAD button and the Quick Access toolbar (0);

·         ribbon or main menu (1);

·         toolbars (2);

·         drawing window (drawing area) (3);

·         documents’ tabs (4);

·         document layouts’ tabs (5);

·         Properties bar (6);

·         command line (7);

·         status bar (8).

Most interface elements can be moved to other places; they can be fixed or floating. Some elements can be auto hidden.
